Remove/Install Loudspeakers In Rear Doors - AR82.62-P-7874GZ

MODEL 164, 166, 292

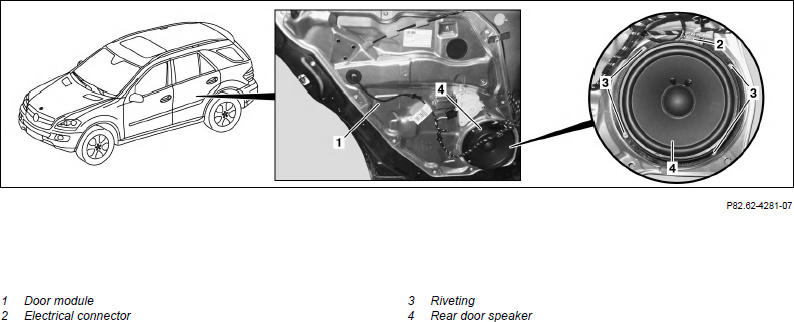

Fig 1: Rear Door Speaker Components Location - Model 166 (Shown On Model 164.1)

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

	Remove/install
1	Switch off radio
2	Remove door lining from left or right rear door	MODEL 164	AR72.12-P-1010GZ
		MODEL 166 without CODE Z04 (Light armoring) without CODE Z05 (B5 armoring on special protection version) MODEL 292	AR72.12-P-1010GQ
3	Disconnect electrical connector (2) from rear door speaker (4)
4.1	Drill out rivets (3) with a drill bit with Ø 4.8 mm	MODEL 164 Rests of rivet must be completely removed. Otherwise corrosion damage may occur. Use aluminum/steel hollow rivets, dia. 4.8 x 15 mm.
4.2	Unscrew bolts	MODEL 166, 292
5	Remove rear door speaker (4) from door module (1)
6	Install in the reverse order
