Remove/Install Display In Rear - AR82.60-P-7720SXS

MODEL 166, 212 with CODE 864 (Rear entertainment system)

MODEL 221.0/1 as of 1.6.09 with CODE 864 (Rear entertainment system)

MODEL 221.0/1 With CODE 864 (Rear entertainment system)

with CODE (800) Model year 2010

Shown on model 212

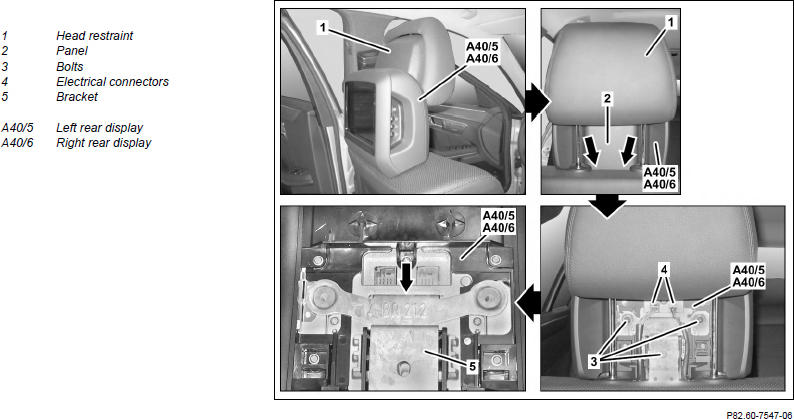

Fig 1: Display In Rear Components Location - Model 166, 212 With Code 864 (Shown On Model 212)

Courtesy of MERCEDES-BENZ USA

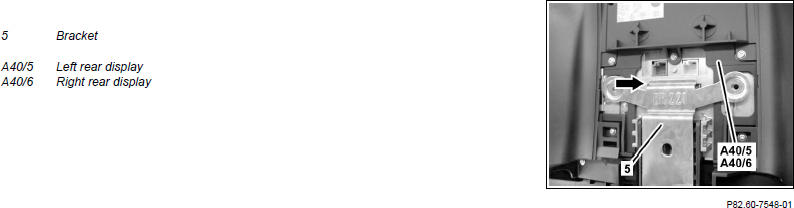

Shown on model 221

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Buffer basic data of rear entertainment system in STAR DIAGNOSIS	When replacing the left rear display (A40/5) or the right rear display (A40/6). Transfer buffered basic data to rear entertainment system.	AD00.00-P-2000-04A
2.1	Move head restraint (1) on front seat up	Model 166, 212
2.2	Remove front seat head restraint (1)	Model 221	AR91.16-P-0040SX
3	Unclip bezel (2) (arrows)	Carefully unclip bezel (2). Otherwise the bezel (2) may be damaged.	Fig 2
4	Remove screws/bolts (3)
5	Disconnect electrical connectors (4)
6	Remove left rear display (A40/5) or right rear display (A40/6)	Note assembly position of left rear display (A40/5) or right rear display (A40/6) on the bracket (5). In models 166, 212 the bracket (5) is hooked into the left rear display (A40/5) or right rear display (A40/6) (arrow). With model 221 the bracket (5) is placed onto the left rear display (A40/5) or right rear display (A40/6) (arrow).
7	Install in the reverse order

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
