Retrofit COMAND APS With DVD Changer - AN82.85-P-0004GQX

Model 166.0##/8## 1#

with code 527 (COMAND APS with single DVD drive (with navigation))

except code 494 (US version)

except code 498 (Japanese version)

except code 510 (Audio 20 CD with 6-disc CD changer)

except code 523 (Audio 20 CD)

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

	Remove

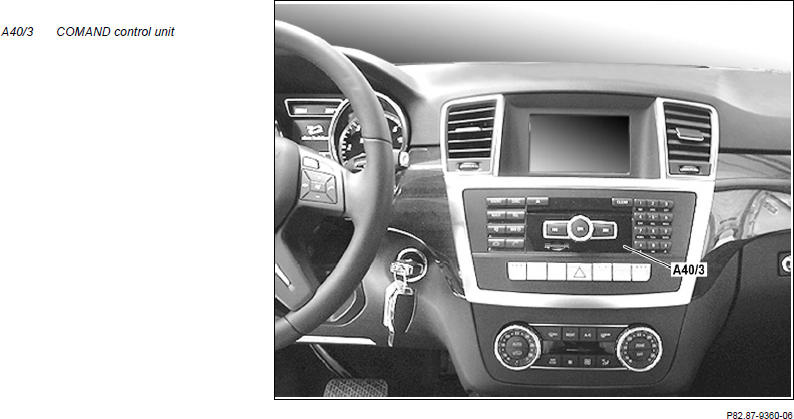

1	Remove COMAND controller unit (A40/3) with single DVD drive
		The COMAND controller unit (A40/3) with single DVD drive is no longer required.	AR82.60-P-7502GQ
	Install
2	Install COMAND controller unit (A403) with DVD changer
			AR82.60-P-7502GQ
3	Connect Star Diagnosis, select vehicle via vehicle identification number (VIN)
4	Delete/enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Delete  : CODE 527 (COMAND APS with single DVD drive (with navigation)) Add  : CODE 512 (COMAND APS with DVD changer)
5	Document retrofitted equipment through VeDoc	Attach "COMAND APS with DVD changer retrofitted, as per AN82.85-P-0004GQX" note under the field organization texts to design group 82.
7	Perform variant coding with XENTRY using the software calibration number (SCN)	Carry out SCN coding of the following control unit using the Diagnosis Assistance System: "COMAND controller unit (A40/3) with DVD changer"
8	Disconnect STAR DIAGNOSIS
			AD00.00-P-2000-04A
9	Perform function test	See operator's manual for COMAND controller unit (A40/3) incl. DVD changer.
