Windshield Washer System - Inspect Fluid Level, Adjust To Correct Level - AP82.35-P-8210GZ
MODEL 164, 166

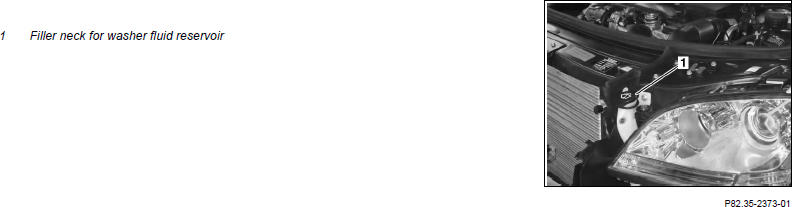

Shown on model 164.1
| Fill | |||
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of children's reach only. |
AS82.35-Z-0001-01A | |
| 1 | Open engine hood | Model 164 | AR88.40-P-1000GZ |
| Model 166 | AR88.40-P-1000GQ | ||
| 2 | Remove cover from filler neck (1) and fill washer fluid reservoir with washing water | *BF82.35-P-1001-01F | |
| Windshield washer fluid concentrate | Sheet 371.0 | BB00.40-P-0371-00A | |
| 3 | Seal filler neck (1) with cap | ||
| 4 | Close engine hood | Model 164 | AR88.40-P-1000GZ |
| Model 166 | AR88.40-P-1000GQ |
WINDSHIELD WASHER SYSTEM FILLING CAPACITY
| Number | Designation | Model 164 | Model 166 | ||
|---|---|---|---|---|---|
| BF82.35-P-1001-01F | Windshield washer fluid | Filling capacity | Liters | 8, 0 | 6.0 |
