Clean Water Drain - AP82.35-P-8232A

Model 166, 204, 207, 212, 218, 231, 292

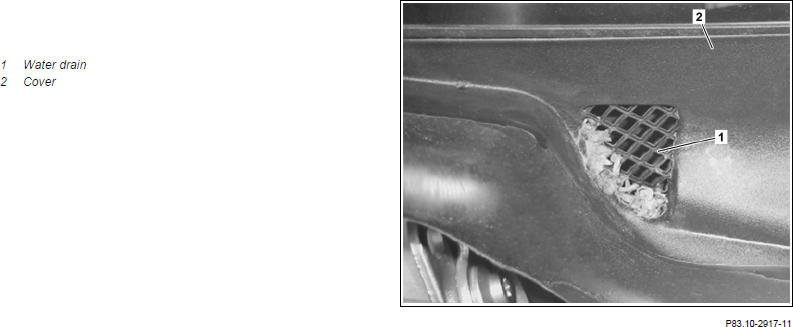

Water drain, shown on model 204.0

Courtesy of MERCEDES-BENZ USA

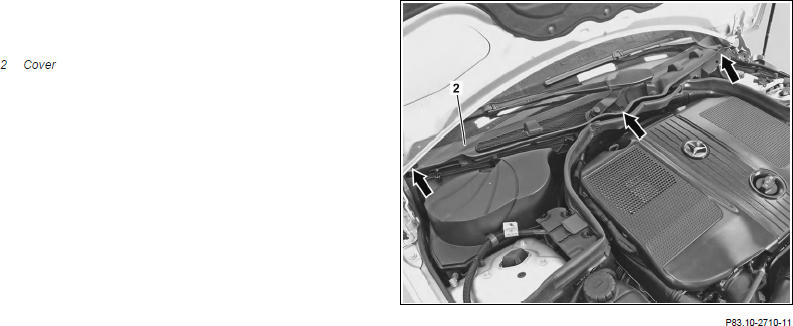

Shown on model 204, valid for model 204, 207, 212, 218, 231

Courtesy of MERCEDES-BENZ USA

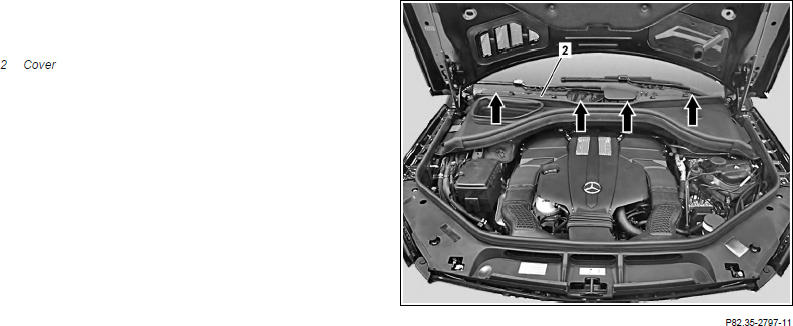

Shown on model 292, valid for model 166, 292

Courtesy of MERCEDES-BENZ USA

	Preparatory activity
1	Open engine hood and position upright.	Model 166, 204, 207, 212, 218, 231, 292
		Model 166	AR88.40-P-1000GQ
		Model 204.3, 207, 212 Model 204.3, 207, 212 with code U60 (Active Bonnet (Pedestrian protection)) Moving engine hood to vertical position.  Remove left and right tensioning lever from upper left and right hinges.	AR88.40-P-1000EW
	Clean
2	Check water drains (1) in cover (2) for signs of soiling, clean if necessary.	Remove any soiling using a wet and dry vacuum cleaner.
	Finishing activity
3	Close hood.	Model 166, 204, 207, 212, 218, 231, 292
		Model 166	AR88.40-P-1000GQ
		Model 204.3, 207, 212 Model 204.3, 207, 212 with code U60 (Active Bonnet (Pedestrian protection)) Closing hood.  Mount left and right clamping levers onto upper left and right hinges.	AR88.40-P-1000EW
