Check, Adjust Low Beams - AP82.10-P-8263BA

Model 166

as of model year 2016

with code 460 (Canada version)

with code 640 (High-performance LED)

except code 641 (Dynamic LED headlamps, left-hand traffic)

except code 642 (Dynamic LED headlamps, right-hand traffic)

Model 166

as of model year 2016

with code 494 (US version)

with code 640 (High-performance LED)

except code 641 (Dynamic LED headlamps, left-hand traffic)

except code 642 (Dynamic LED headlamps, right-hand traffic)

Model 292

with code 460 (Canada version)

with code 640 (High-performance LED)

except code 641 (Dynamic LED headlamps, left-hand traffic)

except code 642 (Dynamic LED headlamps, right-hand traffic)

Model 292

with code 494 (US version)

with code 640 (High-performance LED)

except code 641 (Dynamic LED headlamps, left-hand traffic)

except code 642 (Dynamic LED headlamps, right-hand traffic)

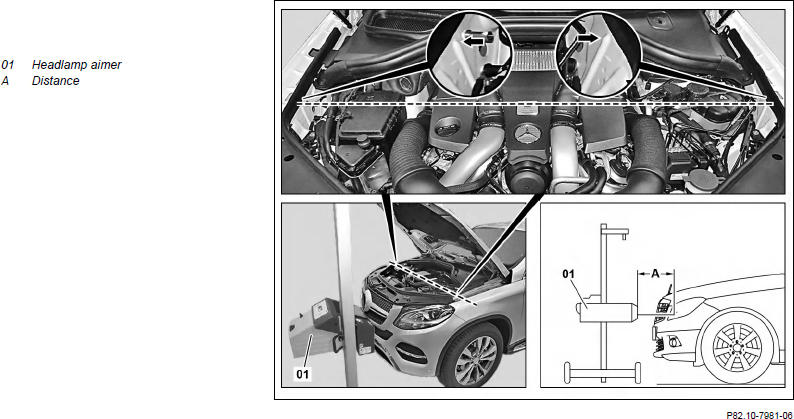

Shown: Model 292

G14137162Courtesy of MERCEDES-BENZ USA

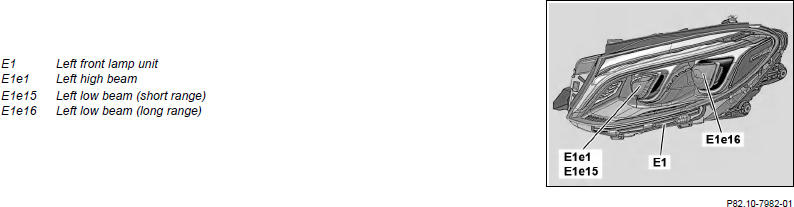

Shown: model 292 with SAE version of dynamic LED headlamp

G14137163Courtesy of MERCEDES-BENZ USA

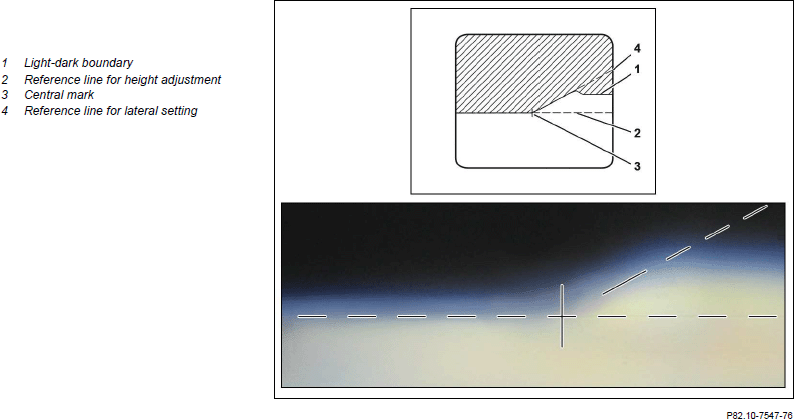

Light gradient for low beams

G14137164Courtesy of MERCEDES-BENZ USA

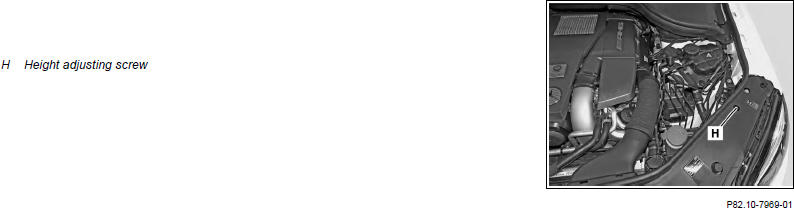

Shown: Model 292

G14137165Courtesy of MERCEDES-BENZ USA

Light gradient for diagnostic light pattern

G14137166Courtesy of MERCEDES-BENZ USA
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
IMPORTANT General information on checking/correcting headlamp adjustment   AH82.10-P-1000-01A
  Preparatory activity
1 Determine degree of inclination for main headlamps
IMPORTANT Notes on determining headlamp aiming values IMPORTANT The degree of inclination for the main headlamps is specified on the model plate on the B-pillar on the passenger side. AH82.10-P-1005-01A
2 Park the vehicle on a horizontal, level surface IMPORTANT Maximum permissible height difference of surface for:
Vehicle ±1 mm/m
Headlamp aimer (01): ±0.5 mm/m

3 Prepare vehicle for checking/correcting headlamp adjustment   AP82.10-P-8260-10E
4 Align headlamp aimer (01) NOTES
It is essential to align the headlamp aimer (01) parallel to the front of the vehicle.
The headlamp adjustment will otherwise be incorrect, which can jeopardize the road safety of the vehicle.
IMPORTANT Align the headlamp aimer (01) at a distance (A) of approx. 30 cm in front of the left front lamp unit (E1) or right front lamp unit level with the left low beams (long range) (E1e16) or right low beams parallel to the front of the vehicle.
Other country-specific regulations or specifications in the operating instructions from the headlamp aiming device manufacturer must be observed accordingly.

5 Set specified degree of inclination for main headlamps at headlamp aimer (01)
6 Switch on low beam IMPORTANT When testing and adjusting the low beams, make sure that the extended fog light function is not  active.
  Check and, if necessary, adjust (checking and adjustment of the low beams is described at the left low beam headlamp (long range) (E1e16); the same procedure is used for the right side.)
7.1 Check height adjustment of left low beam headlamp (long range) (E1e16); adjust if necessary For vehicle with steel suspension on front and rear axle.
IMPORTANT If for a low beam light gradient the height adjustment is correct, the light-dark boundary (1) of the light gradient for the left low beam headlamp (long range) (E1e16) to the left of the center mark (3) must be congruent with the reference line for the height adjustment (2) in the headlamp aimer (01), as shown in the colored image. The colored area of the light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be above the reference line for the height adjustment (2), as shown in the color image.
If the height adjustment of the left low beams (long range) (E1e16) is not correct.
↓
Adjust zero position using diagnostic system in headlamp control unit.
Diagnosis → Control units → view → Body → SG-SW left headlamp → Adaptations → Zero position adjustment.

REFER TO SELF-DIAGNOSTIC SYSTEMS   ↓
Prepare alignment of headlamp aimer (01).
AD00.00-P-2000-04A
    ↓
Switch on rectangular diagnostic light pattern using diagnostic system.
Diagnosis → Control units view → Body → SG-SW left headlamp → Adaptations → Adjusting headlamps using diagnosis.
AP82.10-P-8260-09HA
REFER TO SELF-DIAGNOSTIC SYSTEMS   ↓
When the diagnostic light pattern is switched on and the height adjustment is correct, the horizontal light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) to the left of the center mark (3) must be congruent with the reference line for the height adjustment (2) in the headlamp aimer (01).
The colored area of the light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be above the reference line for the height adjustment (2).
AD00.00-P-2000-04A
    If the height adjustment of the left low beams (long range) (E1e16) is not correct with the diagnostic light pattern switched on.
↓
Turn the adjustment screw for the height adjustment (H) to correct the height adjustment of the left low beam headlamp (long range) (E1e16).

7.2 Check height adjustment of left low beam headlamp (long range) (E1e16); adjust if necessary For vehicle with level control on front and rear axle.
IMPORTANT If for a low beam light gradient the height adjustment is correct, the light-dark boundary (1) of the light gradient for the left low beam headlamp (long range) (E1e16) to the left of the center mark (3) must be congruent with the reference line for the height adjustment (2) in the headlamp aimer (01), as shown in the colored image. The colored area of the light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be above the reference line for the height adjustment (2), as shown in the color image.
If the height adjustment of the left low beams (long range) (E1e16) is not correct.
↓
Move to calibrated vehicle level.
Diagnosis → Control units view → Chassis → ADS - Adaptive Damping Systems → Actuations → Move to calibrated vehicle level and check headlamp adjustment again.

REFER TO SELF-DIAGNOSTIC SYSTEMS   ↓
Headlamp adjustment incorrect
↓
Calibrate level in chassis control unit.
Diagnosis → Control units view → Chassis → ADS - Adaptive Damping Systems → Adaptations → Teach-in processes → Check level calibration and headlamp adjustment again.
AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   ↓
Prepare alignment of headlamp aimer (01).
AD00.00-P-2000-04A
    ↓
Switch on rectangular diagnostic light pattern using diagnostic system.
Diagnosis → Control units view → Body → SG-SW left headlamp → Adaptations → Adjusting headlamps using diagnosis.
AP82.10-P-8260-09HA
REFER TO SELF-DIAGNOSTIC SYSTEMS   ↓
When the diagnostic light pattern is switched on and the height adjustment is correct, the horizontal light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) to the left of the center mark (3) must be congruent with the reference line for the height adjustment (2) in the headlamp aimer (01).
The colored area of the light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be above the reference line for the height adjustment (2).
If the height adjustment of the left low beams (long range) (E1e16) is not correct with the diagnostic light pattern switched on.
↓
Turn the adjustment screw for the height adjustment (H) to correct the height adjustment of the left low beam headlamp (long range) (E1e16).
AD00.00-P-2000-04A
8.1 Check lateral adjustment of left low beam headlamp (long range) (E1e16); adjust if necessary For vehicle with steel suspension on front and rear axle.
IMPORTANT If, for a low beam light gradient the lateral adjustment is correct, the light-dark boundary (1) of the light gradient for the left low beam headlamp (long range) (E1e16) starting at the center mark (3) on the right must be congruent with the reference line for the lateral adjustment (4) in the headlamp aimer (01), as shown on the color image. The colored area of the light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be above the reference line for the lateral adjustment (4), as shown in the color image.
When the diagnostic light pattern is switched on and the lateral adjustment is correct, the vertical light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) each starting at the center mark (3) must run upward at 900 to the reference line for the height adjustment (2) in the headlamp aimer (01). The colored area of the vertical light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be to the left of the center mark (3).
If the lateral adjustment of the left low beams (long range) (E1e16) is not correct with the diagnostics light pattern already switched on.
↓
Subject to a separate repair order, check and correct the installation position of the headlamp concerned. Then work through operation steps 2 to 8.1 again.
Gap dimension
*BE60.00-P-1001-01Z
REFER TO SELF-DIAGNOSTIC SYSTEMS   Gap dimension
If the height adjustment of the left low beams (long range) (E1e16) was correct and the lateral adjustment of the left low beams (long range) (E1e16) is not correct.
↓
Adjust zero position using diagnostic system in headlamp control unit.
Diagnosis → Control units view → Body → SG-SW left headlamp → Adaptations → Zero position adjustment.
*BE60.00-P-1002-01Z
REFER TO SELF-DIAGNOSTIC SYSTEMS   ↓
Prepare alignment of headlamp aimer (01).
AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   ↓
Switch on rectangular diagnostic light pattern using diagnostic system.
Diagnosis → Control units view → Body → SG-SW left headlamp → Adaptations → Adjusting headlamps using diagnosis.
AP82.10-P-8260-09HA
REFER TO SELF-DIAGNOSTIC SYSTEMS   ↓
Check the height adjustment of the left low beam headlamp (long range) (E1e16) again using the diagnostic light pattern switched on; if necessary, correct by turning the adjustment screw for the height adjustment (H).
↓
Check lateral adjustment of left low beams (long range) (E1e16).
↓
If the lateral adjustment of the left low beams (long range) (E1e16) is not correct with the diagnostics light pattern already switched on.
↓
AD00.00-P-2000-04A
    Subject to a separate repair order, check and correct the installation position of the headlamp concerned. Then work through operation steps 2 to 8.1 again.
Gap dimension
*BE60.00-P-1001-01Z
    Gap dimension *BE60.00-P-1002-01Z
8.2 Check lateral adjustment of left low beam headlamp (long range) (E1e16); adjust if necessary For vehicle with level control on front and rear axle.
IMPORTANT If, for a low beam light gradient the lateral adjustment is correct, the light-dark boundary (1) of the light gradient for the left low beam headlamp (long range) (E1e16) starting at the center mark (3) on the right must be congruent with the reference line for the lateral adjustment (4) in the headlamp aimer (01), as shown on the color image. The colored area of the light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be above the reference line for the lateral adjustment (4), as shown in the color image.
When the diagnostic light pattern is switched on and the lateral adjustment is correct, the vertical light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) each starting at the center mark (3) must run upward at 900 to the reference line for the height adjustment (2) in the headlamp aimer (01). The colored area of the vertical light-dark boundary (1) of the left low beam headlamp (long range) (E1e16) must be to the left of the center mark (3).
If the lateral adjustment of the left low beams (long range) (E1e16) is not correct with the diagnostics light pattern already switched on.
↓
Subject to a separate repair order, check and correct the installation position of the headlamp concerned. Then work through operation steps 2 to 8.2 again.

    Gap dimension *BE60.00-P-1001-01Z
    Gap dimension
If the height adjustment of the left low beams (long range) (E1e16) was correct and the lateral adjustment of the left low beams (long range) (E1e16) is not correct.
↓
Move to calibrated vehicle level.
Diagnosis → Control units view → Chassis → ADS - Adaptive Damping Systems → Actuations → Move to calibrated vehicle level and check headlamp adjustment again.
*BE60.00-P-1002-01Z
REFER TO SELF-DIAGNOSTIC SYSTEMS   Headlamp adjustment incorrect
↓
Calibrate level in chassis control unit.
Diagnosis → Control units view → Chassis → ADS - Adaptive Damping Systems → Adaptations → Teach-in processes → Check level calibration and headlamp adjustment again.
AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   ↓
Prepare alignment of headlamp aimer (01).
AD00.00-P-2000-04A
    ↓
Switch on rectangular diagnostic light pattern using diagnostic system.
Diagnosis → Control units view → Body → SG-SW left headlamp → Adaptations → Adjusting headlamps using diagnosis.
AP82.10-P-8260-09HA
REFER TO SELF-DIAGNOSTIC SYSTEMS   ↓ AD00.00-P-2000-04A
    Check the height adjustment of the left low beam headlamp (long range) (E1e16) again using the diagnostic light pattern switched on; if necessary, correct by turning the adjustment screw for the height adjustment (H).
↓
Check lateral adjustment of left low beams (long range) (E1e16).
↓
If the lateral adjustment of the left low beams (long range) (E1e16) is not correct with the diagnostics light pattern already switched on.
↓
Subject to a separate repair order, check and correct the installation position of the headlamp concerned. Then work through operation steps 2 to 8.2 again.
Gap dimension
*BE60.00-P-1001-01Z
    Gap dimension *BE60.00-P-1002-01Z
  Finishing activity
9 Reset switch positions to input condition Only if the high beam setting is not to be checked afterwards.
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 166 Model 292
BE60.00-P-1001-01Z Gap dimension Engine hood to fender Dimension "A" mm 3, 8 (±1) 3, 0 (±0, 5)
    Engine hood to headlamp Dimension "B" mm 3, 9 (±1) 3, 5 (±1)
    Engine hood to bumper Dimension "C" mm 5, 4 (± 1, 5) 4, 5 (±1, 5)
    Fender to A-pillar Dimension "D" mm 3, 5 (±1 1) 3, 0 (±0, 5)
    Front door to fender Dimension "E" mm 4, 3 (±0, 7) 4, 0 (±1/-0, 5)
    Front door to rear door Dimension "F" mm 4, 8 (±0, 7) 4, 5 (±1/-0, 5)
    Rear door to rear fender Dimension "I" mm 4, 3 (±0, 7) 3, 5 (±1/-0, 5)
      For picture, see   AR60.00-P-0700-01GQ AR60.00-P-0700-01GQ
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 166 Model 292
BE60.00-P-1002-01Z Gap dimension Bumper to headlamp Dimension "S1" mm 3, 0 (±0, 5) 2, 0 (±1)
      Dimension "S2" mm 3, 0 (±0, 5) 2, 0 (±1)
      Dimension "S3" mm 3, 0 (±0, 5) 3, 0 (±1)
    Fender to headlamp Dimension "R" mm 3, 9 (±1) 3, 0 (±1)
    Engine hood to A-pillar Dimension "Q" mm 3, 5 (±1) 4, 0 (±1, 5/-1, 0)
      For picture, see   AR60.00-P-0700-01GQ AR60.00-P-0700-01GQ
