Prepare Outer Rear Wheel Well For Installation - Ar63.10-P-0670-05GQX

Model 166.8

Courtesy of MERCEDES-BENZ USA

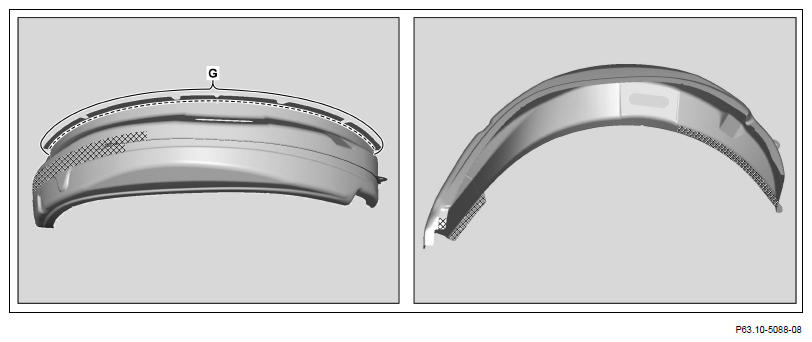

1. Scribe separating line on outer rear wheel well along edge and cut (area G).
2. Remove outer rear wheel well section.
3. Grind mating surfaces on outer rear wheel well down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

4. Coat insides of spot welding flanges with zinc dust paint.
