Prepare New Rear Fender - Ar63.50-P-1400-03GQX

Model 166.8

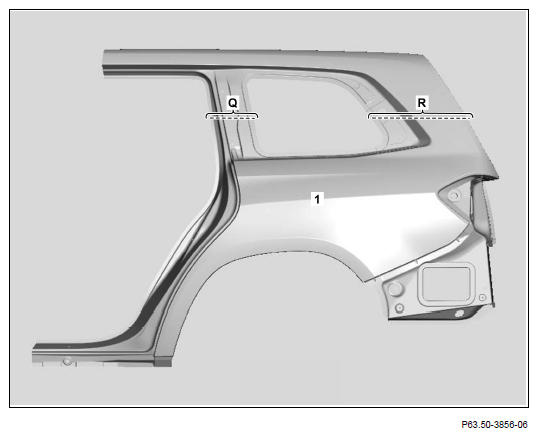

1. Scribe separating points on rear fender (1) and cut (areas Q and R).

   Transfer dimensions from vehicle.

2. Remove section from rear fender (1).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

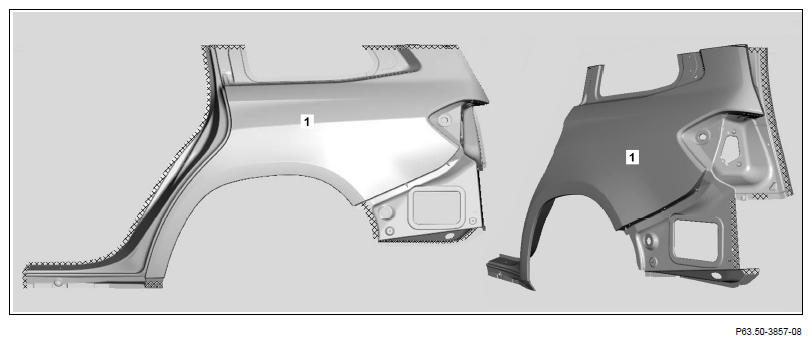

3. Grind mating surfaces on rear fender (1) down to bare metal in the crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

4. Coat insides of spot welding flange on rear fender (1) with zinc dust paint.
