Replace Brake Hoses - AR42.10-P-0013GZ

Model 164, 166, 292

Courtesy of MERCEDES-BENZ USA

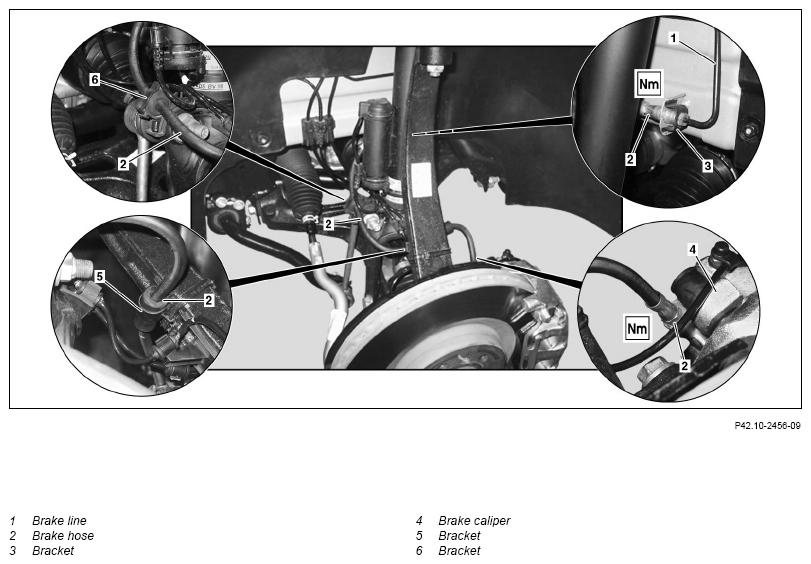

Shown on front axle of model 164

Courtesy of MERCEDES-BENZ USA

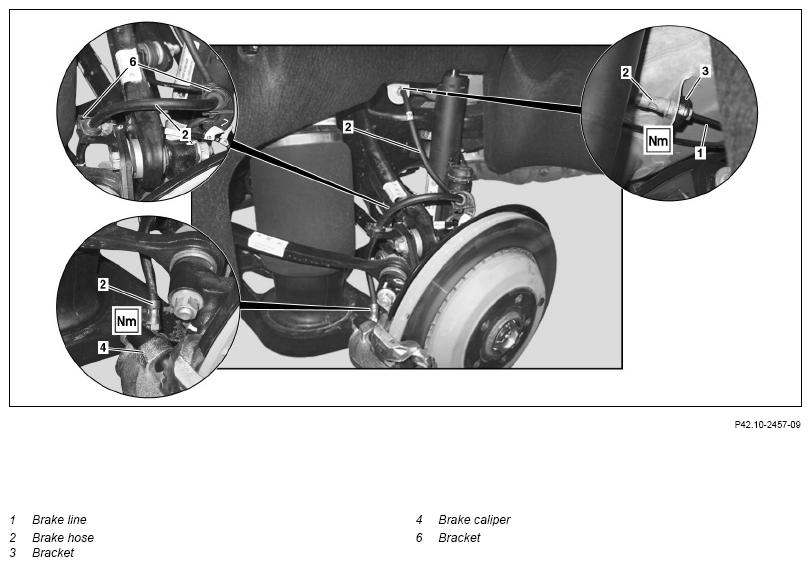

Rear axle shown on model 164

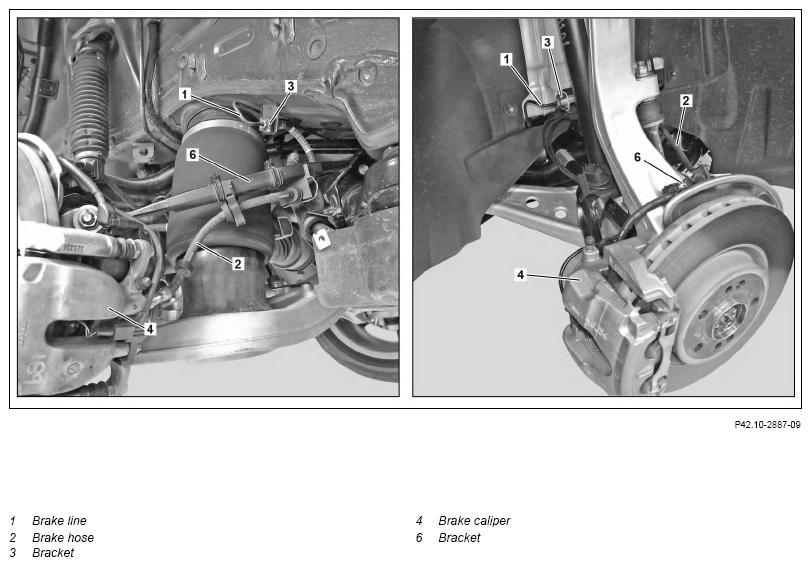

Fig 1: Brake Hoses Components Location - Model 166

Courtesy of MERCEDES-BENZ USA

Shown on model 166

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing Warning and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on installing brake hoses		AH42.10-P-9406-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Remove/install
1	Detach corresponding complete wheel
		Model 164	AP40.10-P-4050Z
		Model 166	AP40.10-P-4050EW
		Model 292	AR40.10-P-1100GQC
	Clean
2	Clean the area around the brake line (1) and brake hose (2) in the area of the separation points	Before opening the brake system, the area around the separating point must be cleaned thoroughly. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the brake system.
3	Detach brake line (1) from brake hose (2)	Do not twist bracket (3).
		Brake line to brake hose	*BA42.10-P-1002-04J
		Box wrench bit In model 166 the brake caliper (4) on the rear axle may not be drained. ↓ Otherwise it must be replaced.	Fig 5
4	Seal exposed connections	Seal connections immediately. Otherwise, escaping brake fluid may damage adjacent components. Record plug	Fig 4
5	Detach brake hose (2) from bracket (6)	Model 166, 292
6	Unscrew brake hose (2) from brake caliper (4)	Brake hose to brake caliper	*BA42.10-P-1001-04J
		Box wrench	Fig 2
7	Seal exposed connections	Seal connections immediately. Otherwise, escaping brake fluid may damage adjacent components.
		Record plug	Fig 4
8	Detach brake hose (2) from bracket (5)	Model 164 on front axle.
		Pliers	Fig 3
9	Detach brake hose (2) from bracket (6)	Model 164
10	Use water to rinse off any escaped brake fluid
11	Install in the reverse order
	Bleed brake system
12	Bleed brake system	Model 164	AR42.10-P-0010GZ
		Model 166, 292	AR42.10-P-0010CW
	Check
13	Check brake system for leaks		AR42.10-P-0100-01GZ
14	Carry out brake test on the test stand
			AP42.00-P-4290BA

Fig 2: Identifying Box Wrench (000 589 76 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Pliers (164 589 01 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Box Wrench Bit (000 589 75 03 00)

Courtesy of MERCEDES-BENZ USA
