Remove/Install DISTRONIC Sensor (DTR) - AR30.30-P-1010GQB
MODEL 166
with code 239 (Active Distance Assist DISTRONIC)
except code 233 (DISTRONIC PLUS)
MODEL 292
with code 239 (Active Distance Assist DISTRONIC)
except code 233 (DISTRONIC PLUS)
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2.1 | Remove radiator grille. | Model 166 up to model year 2016 with code 239 (Active Distance Assist DISTRONIC) except code 233 (DISTRONIC PLUS) |
|
| Model 166.0 up to model year 2016 with code 239 (Active Distance Assist DISTRONIC) except code 233 (DISTRONIC PLUS) |
AR88.40-P-4001GQ | ||
| Model 166.8 up to model year 2016 with code 239 (Active Distance Assist DISTRONIC) except code 233 (DISTRONIC PLUS) |
|||
| 2.2 | Remove Mercedes star. | Model 166, 292 as of model year 2016 with code 239 (Active Distance Assist DISTRONIC) except code 233 (DISTRONIC PLUS) |
|
| Model 166 as of model year 2016 with code 239 (Active Distance Assist DISTRONIC) except code 233 (DISTRONIC PLUS) |
AR88.40-P-4050NKB | ||
| Model 292 as of model year 2016 with code 239 (Active Distance Assist DISTRONIC) except code 233 (DISTRONIC PLUS) |
AR88.40-P-4050GQC | ||

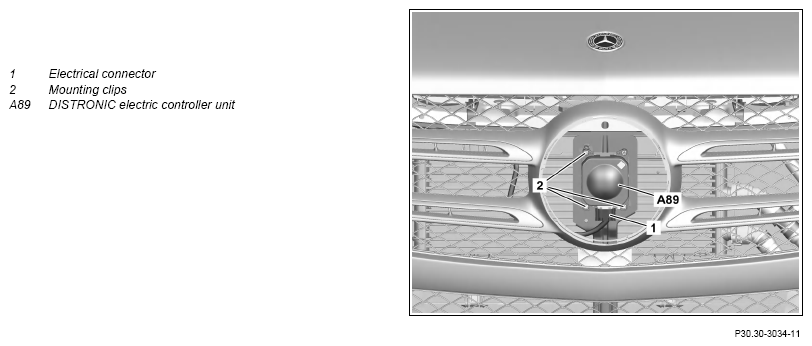

| 3 | Release and disconnect electrical connector (1) at DISTRONIC electric controller unit (A89). | ||
| 4 | Unclip DISTRONIC electric controller unit (A89) from mounting clips (2). | ||
| 5 | Install in the reverse order | ||
| Initial startup | |||
| 6 | Perform commissioning of DISTRONIC electric controller unit (A89). | If DISTRONIC electric controller unit (A89) was replaced. | |
| AD00.00-P-2000-04A | |||
| 7 | Perform calibration of DISTRONIC electric controller unit (A89). | If DISTRONIC electric controller unit (A89) was replaced. Removal/installation of DISTRONIC electric controller unit (A89). Alterations of the bracket. After accident repair in front area or alteration of the camber, track width, caster or vehicle level at the front or rear axle. Adjustment of DISTRONIC electric controller unit (A89) with adjusting device. | |
| AD00.00-P-2000-04A | |||
| 000 588 17 21 00 Adjusting device | WS30.00-P-0006B |
