Remove/Install DISTRONIC Sensor (DTR) - AR30.30-P-1010GQ
MODEL 166
with code 233 (DISTRONIC PLUS)
except code 239 (Active Distance Assist DISTRONIC)
MODEL 292
with code 233 (DISTRONIC PLUS)
except code 239 (Active Distance Assist DISTRONIC)

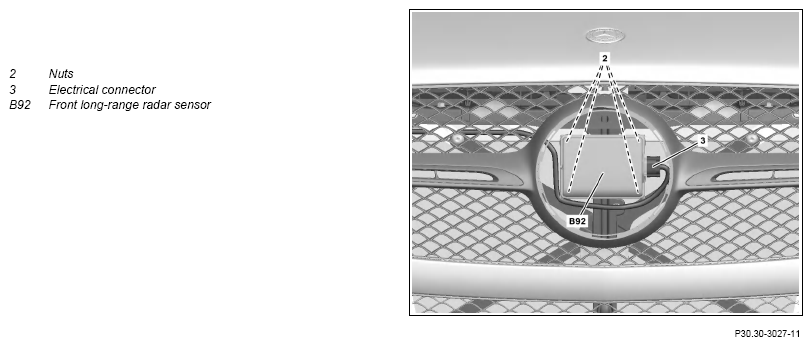

Shown on MODEL 292
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2.1 | Remove radiator grille. | Model 166 up to model year 2016 with code 233 (DISTRONIC PLUS) except code 239 (Active Distance Assist DISTRONIC) |
|
| Model 166.0 up to model year 2016 with code 233 (DISTRONIC PLUS) except code 239 (Active Distance Assist DISTRONIC) |
AR88.40-P-4001GQ | ||
| Model 166.8 up to model year 2016 with code 233 (DISTRONIC PLUS) except code 239 (Active Distance Assist DISTRONIC) |
|||
| 2.2 | Remove Mercedes star. | Model 166 as of model year 2016 with code 233 (DISTRONIC PLUS) except code 239 (Active Distance Assist DISTRONIC) |
|
| Model 292 with code 233 (DISTRONIC PLUS) except code 239 (Active Distance Assist DISTRONIC) |
|||
| Model 166 as of model year 2016 with code 233 (DISTRONIC PLUS) except code 239 (Active Distance Assist DISTRONIC) |
AR88.40-P-4050NKB | ||
| Model 292 with code 233 (DISTRONIC PLUS) except code 239 (Active Distance Assist DISTRONIC) |
AR88.40-P-4050GQC | ||
| 3 | Release and disconnect electrical connector (3) from the front long-range radar sensor (B92). | ||
| 4 | Unscrew nuts (2) and remove from front long-range radar sensor (B92). | ||
| 5 | Install in the reverse order | ||
| Initial startup | |||
| 6 | Perform commissioning of front long-range radar sensor (B92). | If the front long-range radar sensor (B92) has been replaced. When replacing the steering column tube module control unit (N80) or the yaw rate sensor for lateral and longitudinal acceleration (B24/15). | |
| AD00.00-P-2000-04A | |||
| 7 | Perform calibration of the front long-range radar sensor (B92). | If the front long-range radar sensor (B92) has been replaced. Removal and installation of the front long range radar sensor (B92). Alterations of the bracket. After accident repair in front area or alteration of the camber, track width, caster or vehicle level at the front or rear axle. |
|
| AD00.00-P-2000-04A |
