Remove/Install Transmission With Torque Converter - AR27.10-P-0500GQ

Transmission 722.9 in model 166, 292

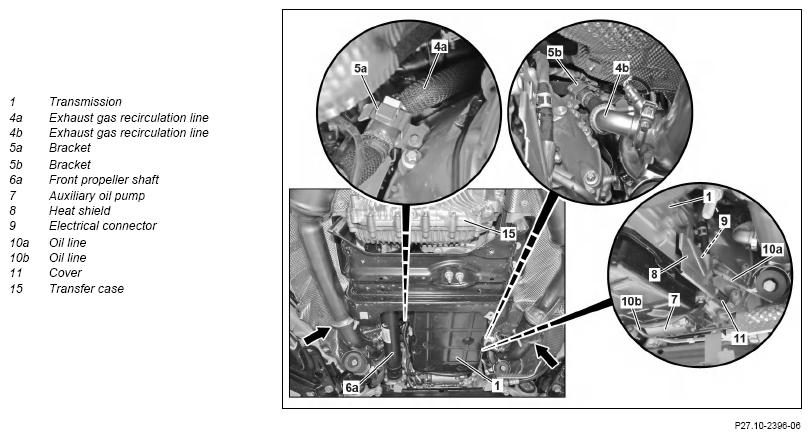

Shown on engine 276.9 with code 920 (Gasoline direct injection with stratified charge)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

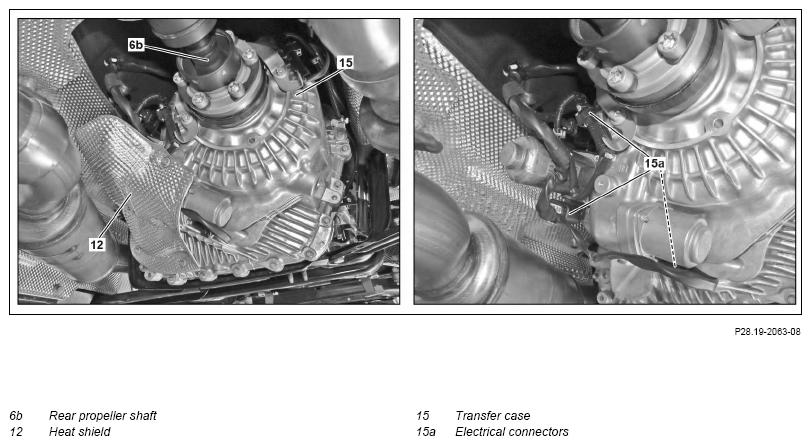

Shown on transfer case (15) with code 430 (On & off-road package)

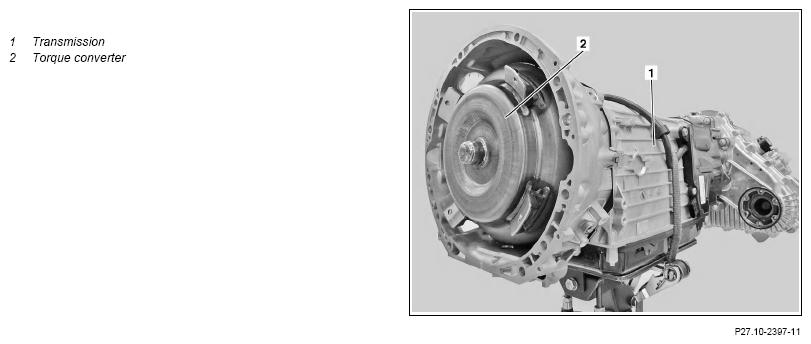

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of Transmission oil. Health risk caused by swallowing Transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour Transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on Bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Notes on self-locking nuts and Bolts		AH00.00-N-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Secure vehicle against rolling
2	Shift Transmission (1) into neutral position
3	Release parking brake
4	Disconnect ground line from battery		AR54.10-P-0003GZ
Notice	Notes on battery		AH54.10-P-0001-01A
5	Secure vehicle on vehicle lift		AR00.60-P-0100GZ
6	Remove rear part of underfloor paneling		AR61.30-P-1001GQ
7.1	Remove left and right holder of underfloor paneling from front axle carrier	Transmission 722.9 in model 166 with engine 276.8
7.2	Detach exhaust gas recirculation lines (4a, 4b) from exhaust system	Transmission 722.9 in model 166 with engine 276.9 with code 920 (Direct fuel injection with stratified charging)
			AR49.10-P-7100GQA
8.1	Remove left and right holder of catalytic converter from Transmission (1)	Transmission 722.9 in model 166 with engine 276.8
		Bolt, exhaust system bracket to transmission	*BA49.10-P-1020-01AK
8.2	Detach holders (5a, 5b) from Transmission (1)	Transmission 722.9 in model 166 with engine 276.9 with code 920 (Direct fuel injection with stratified charging)
9.1	Detach rear exhaust system at connecting point (arrows) and remove	Model 166 with engine 276.9 with Transmission 722.9 with code 920 (Direct fuel injection with stratified charging)
			AR49.10-P-7100GQA
9.2	Detach catalytic converter from center muffler	Model 166 with engine 276.9 with Transmission 722.9 except code 920 (Direct fuel injection with stratified charging)
9.3	Detach exhaust system at connecting point between diesel particulate filter and exhaust pipe and remove	Model 166 with engine 651 with Transmission 722.9 Model 166, 292 with engine 642 with Transmission 722.9
		Model 292 with engine 642 with Transmission 722.9	AR49.10-P-7142OGR
		Model 166 with engine 642 with Transmission 722.9 Model 166 with engine 651 with Transmission 722.9	AR49.10-P-7100GQB
9.4	Remove rear exhaust system at connecting point of catalytic converter	Transmission 722.9 in model 166 with engine 276.8
			AR49.10-P-7100GQA
10.1	Unclip electrical line of left oxygen sensor downstream of catalytic converter from Transmission (1)	Transmission 722.9 in model 166 with engine 276.9 Transmission 722.9 in model 166, 292 with engine 157 Transmission 722.9 in model 166, 292 with engine 278
10.2	Detach temperature sensor upstream of diesel particulate filter and place to one side	Transmission 722.9 in model 166 with engine 651 Transmission 722.9 in model 166, 292 with engine 642
			AR07.04-P-0005OGR
11	Remove heat shield (12) from transfer case (15)
12	Detach rear propeller shaft (6b) at output flange to rear axle from transfer case (15) or adapter housing		AR41.10-P-0050-17GZ
		Mark the rear propeller shaft (6b) relative to the propeller shaft flange. Observe the tightening procedure for the rear propeller shaft (6b) to the transfer case (15) or adapter housing.
		Model 166 with Transmission 722.9 Model 292 with Transmission 722.9 Self-locking screw/ Bolt of propeller shaft at transfer case/adapter housing (to rear axle)	*BA41.10-P-1001-01F
		Retainer wrench	Fig 3
13	Place rear propeller shaft (6b) to one side and fix in place
14	Detach front propeller shaft (6a) to front axle from output flange of transfer case (15)	Model 166 (except 166.006/058), 292 with Transmission 722.9	AR41.10-P-0070-03GZ
		Observe tightening procedure for front propeller shaft (6a).
		Model 166 with Transmission 722.9 Model 292 with Transmission 722.9 Self-locking Bolt, drive shaft to transfer case (to front axle)	*BA41.10-P-1003-01F
		Retainer wrench	Fig 3
15	Place front propeller shaft (6b) to one side and fix in place
16	Release, detach and unclip electrical connections (15a) on transfer case (15)	Transmission 722.9 in model 166 (except 166.006/058), 292
17	Release and disconnect electrical connector from intelligent servo module for DIRECT SELECT (A80)		AR27.19-P-0550GQ
18	Release and disconnect electrical connection from auxiliary oil pump (7)	Transmission 722.9 in model 166, 292 with code B03 (ECO start/stop function)	AR27.30-P-0651GQ
19	Unclip wiring harness of intelligent servo module for DIRECT SELECT (A80) from Transmission (1)
20	Detach heat shield (8) from Transmission (1)	Model 166.0, 292 with Transmission 722.9	AR27.40-P-0700-01GZ
		Bolt, heat shield to Transmission housing	*BA27.40-P-1014-01A
21	Release and disconnect electrical connector (9) from Transmission (1)
22	Detach wiring harness from Transmission (1)
23	Detach oil lines (10a, 10b) from Transmission (1) and place to one side		AR27.55-P-0600GQ
24.1	Detach oil line (10a) from thermostat	Transmission 722.9 in model 166 with engine 276.9 Transmission 722.9 in model 166, 292 with engine 157 Transmission 722.9 in model 166, 292 with engine 278
			AR27.55-P-0600GQ
24.2	Detach oil lines (10a, 10b) from Transmission bracket	Transmission 722.9 in model 166, 292 with engine 276.8
25	Prop up and strap down Transmission (1) using major-assembly support and mounting plate
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
26	Remove engine cross member at rear	Transmission 722.9 in model 292 with engine 642	AR22.10-P-4360OGR
		Transmission 722.9 in model 166 with engine 276 Transmission 722.9 in model 166 with engine 278 Transmission 722.9 in model 166 with engine 642 Transmission 722.9 in model 166 with engine 651 Transmission 722.9 in model 166, 292 with engine 157	AR22.10-P-1180GQ
27	Remove cover (11) and detach torque converter (2) from star-shaped drive plate		AR27.20-P-0100-01A
		Bolt, torque converter to driver spider	*BA27.20-P-1002-01C
		Transmission 722.9 in model 166 with engine 651 Counterholder	Fig 6
		Socket wrench bit	Fig 4
		Long wedge	Fig 5
28	Pry torque converter (2) evenly off star-shaped drive plate	Long wedge	Fig 5
29	Remove right lambda sensor line routing holder from torque converter housing	Transmission 722.9 in model 166, 292 with engine 276.8
30	Remove holder at left lambda sensor plug from torque converter housing	Transmission 722.9 in model 166, 292 with engine 276.8
31	Detach starter from Transmission (1)	Transmission 722.9 in model 166 with engine 651	AR15.30-P-7100CD
		Transmission 722.9 in model 166, 292 with engine 642	AR15.30-P-7100OGR
		Transmission 722.9 in model 166 with engine 276.8	AR15.30-P-7100GQ
		Transmission 722.9 in model 166 with engine 276.9	AR15.30-P-7100GQA
		Model 166 with engine 278 with Transmission 722.9 Model 166, 292 with engine 157 with Transmission 722.9 Place starter with attached lines to one side and secure against falling down.	AR15.30-P-7100MLJ
32	Remove screws around circumference of Transmission (1)	Bolt, automatic Transmission to engine	*BA27.40-P-1008-01A
33	Remove Transmission (1) with transfer case (15) or adapter housing
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate	Lower the major assembly lifter slowly and secure the torque converter (2) to prevent it from falling out.	WS26.00-P-3309B
		Align the bores of the torque converter (2) with the bores in the driver spider.
34	Remove torque converter (2)	If necessary.	AR27.20-P-0500-01W
		Pay attention to the installation height of the torque converter (2). Multi-purpose paste	*BR00.45-Z-1009-06A
		Transmission 722.9 (except 722.9 3) in model 166, 292 Installed height of torque converter	*BE27.20-P-1001-01E
		Handles	Fig 2
		Parallel rest	Fig 1
35	Remove corrosion from crankshaft		AR03.20-P-1000-01A
		Assembly cleaner	*BR00.45-Z-1028-04A
		Multi-purpose paste	*BR00.45-Z-1009-06A
	Check
36	Check threaded unions in driver spider	If threaded unions are damaged or loose ↓ Install a new driver spider.
		Transmission 722.9 in model 166, 292 with engine 642	AR03.30-P-8001OGR
		Transmission 722.9 in model 166 with engine 278 Transmission 722.9 in model 166, 292 with engine 157	AR03.30-P-8001MLJ
		Transmission 722.9 in model 166 with engine 276	AR03.30-P-8001GQ
		Transmission 722.9 in model 166 with engine 651	AR03.30-P-8001CD
37	Install in the reverse order
	Check
38	Check Transmission oil level and correct if necessary		AR27.00-P-0270W
		Follow the prescribed work procedure exactly and observe the Specifications for Operating Fluids. The Transmission (1) will otherwise be damaged.
39	Perform Transmission adaptation using diagnostic system	After replacement or repair of Transmission (1).
40	Reset data on service life of torque converter lockup clutch using diagnostic system	After replacement of torque converter (2).
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
41	Conduct engine test run, and check Transmission (1) for leak tightness and proper operation
