Remove/Install Wheels, Rotate If Necessary - AP40.10-P-4050EW

Model 166, 212, 218, 231

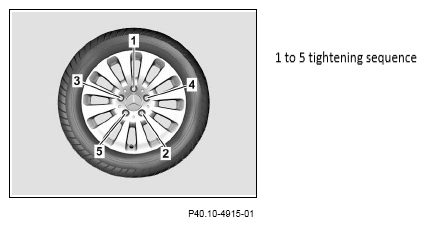

Fig 1: Wheels Tightening Sequence Model 166

Courtesy of MERCEDES-BENZ USA

Left illustration

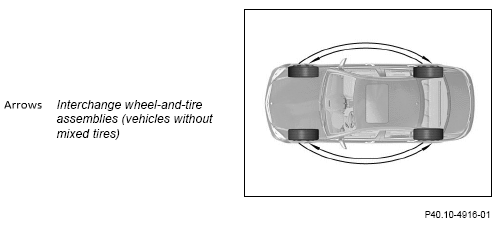

Right figure

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Limited maximum speed for winter tires with speed index V		AH40.10-P-1020-03A
	Information on tires/rims		AH40.10-P-9411-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Remove
1	Lift vehicle with lifting platform.
			AR00.60-P-1006A
2	Remove hub caps.	Vehicles with hub caps.
3	Unscrew Wheel bolts and remove Wheel and tire assemblies.	For model 166 and vehicles with code (B07) Ceramic brake system, remove Wheel-and-tire assembly using Wheel lift only. The brake disks and complete Wheels can otherwise be damaged.
	Check
4	Check tires for damage and condition.		AP40.10-P-4051EW
	Install
5	Clean and check components of Wheel threaded connections, and protect against corrosion.
			AR40.10-P-1100-02A
		Before mounting a Wheel-and-tire assembly conduct all the operation steps listed in the linked description carefully. The complete Wheel can otherwise work its way loose from the vehicle.
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
6	Swap over Wheel and tire assemblies on front and rear axle.	On vehicles without mixed tires. Note running direction of Wheel-and-tire assemblies. Otherwise, handling characteristics and handling comfort may be impaired and tire wear increased. Change Wheel and tire assemblies if necessary, subject to separate repair order.
7	Mount Wheel and tire assemblies and tighten Wheel bolts.	For model 166 and vehicles with code (B07) Ceramic brake system, mount Wheel-and-tire assembly using Wheel lift only. The brake disks and complete Wheels can otherwise be damaged. Observe the tightening sequence (1 to 5) and tightening torque.
		Model 166 Wheel bolt	*BA40.10-P-1001-01J
		Model 212 Model 218 Wheel bolt	*BA40.10-P-1001-01M
		Model 231 Wheel bolt	*BA40.10-P-1001-01A
8	Lower vehicle.
			AR00.60-P-1006A
9	Correct tire pressure of tires on front and rear axle.		AP40.15-P-4061A
		If an unusual tire pressure loss occurs, ↓ determine cause and correct. After obtaining special order.
10	Install hub caps.	Vehicles with hub caps. Check for correct positioning of hubcap to valve and for correct seating. Otherwise the valve will be damaged or the hubcap will be lost.
11.1	Activate tire pressure monitoring system.	Only vehicles with CODE 475 (Tire pressure monitor)
			AR54.30-P-1000-02RAU
		Only for Wheel-and-tire assembly change, tire replacement or a change in tire pressure.
11.2	Activate tire pressure loss warning system.	Only vehicles except CODE 475 (Tire pressure monitor)
		Only for Wheel-and-tire assembly change, tire replacement or a change in tire pressure.	AR54.30-P-1000-02RAE

WHEELS

Number	Designation		Model 231
BA40.10-P-1001-01A	Wheel bolt	Nm	130

WHEELS

Number	Designation		Model 166
BA40.10-P-1001-01J	Wheel bolt	Nm	150

WHEELS

Number	Designation		Model 212	Model 218
BA40.10-P-1001-01M	Wheel bolt	Nm	130	130

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DBL 6879.20	A 000 989 76 51
