Adjust Rear-Axle Toe - AR40.20-P-0261GQ

Model 166, 292

MODIFICATION NOTES

19.10.2020

Assign specified suspension data online.

Operation step 1.

Courtesy of MERCEDES-BENZ USA

	Assign specified suspension data
1	Assign specified suspension data online.	To make it easier to assign the current suspension data, the specified suspension data can be assigned online using the vehicle identification number.	AR40.20-P-0001A
	Adjust

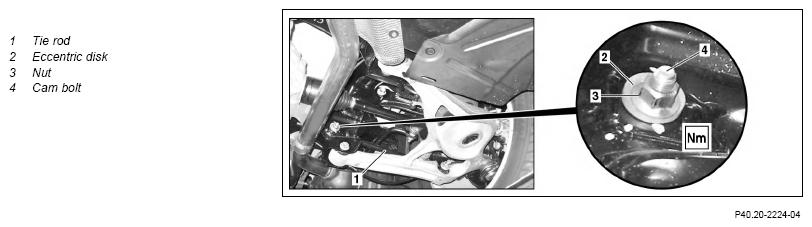

2	Loosen nut (3).
3	Adjust toe using cam bolt (4) and eccentric disk (2).	Total toe at vehicle level	*BE40.20-P-1001-10P
		Permissible difference in rear axle toe between right and left sides of vehicle If the test specifications are not reached, ↓ Replace tie rod (1).	*BE40.20-P-1002-10P
			AR35.20-P-0109GZ
4	Tighten nut (3).	Self-locking nut, tie rod to rear axle carrier	*BA35.20-P-1001-04F

CHECK VALUES FOR REAR AXLE TOE

Number	Designation			Model 166.0 except code 489/491/Z04/Z05	Model 166.0 with code 489, model 166.8
BE40.20-P-1001-10P	Total toe at vehicle level	-0.77°	∠°	-	0° 32' (±7')
		-0.64°	∠°	-	-
		2.39°	∠°	-	-
		3.36°	∠°	0° 23' (±7')	-

CHECK VALUES FOR REAR AXLE TOE

Number	Designation			Model 166.0 with code 491	Model 166.0 with code Z04/Z05
BE40.20-P-1001-10P	Total toe at vehicle level	-0.77°	∠°	-	0° 32' (±7')
		-0.64°	∠°	-	-
		2.39°	∠°	0° 25' (±7')	-
		3.36°	∠°	-	-

CHECK VALUES FOR REAR AXLE TOE

Number	Designation			Model 166 AMG	Model 292 except code 489
BE40.20-P-1001-10P	Total toe at vehicle level	-0.77°	∠°	0° 32' (±7')	-
		-0.64°	∠°	-	0° 29' (±7')
		2.39°	∠°	-	-
		3.36°	∠°	-	-

CHECK VALUES FOR REAR AXLE TOE

Number	Designation			Model 292 with code 489	Model 292 AMG
BE40.20-P-1001-10P	Total toe at vehicle level	-0.77°	∠°	0° 32' (±7')	0° 32' (±7')
		-0.64°	∠°	-	-
		2.39°	∠°	-	-
		3.36°	∠°	-	-

CHECK VALUES FOR REAR AXLE TOE

Number	Designation		Model 166.0 except code 489/491/Z04/Z05	Model 166.0 with code 489, model 166.8
BE40.20-P-1002-10P	Permissible difference in rear axle toe between right and left sides of vehicle	∠°	±15'	±15'

CHECK VALUES FOR REAR AXLE TOE

Number	Designation		Model 166.0 with code 491	Model 166.0 with code Z04/Z05
BE40.20-P-1002-10P	Permissible difference in rear axle toe between right and left sides of vehicle	∠°	±15'	±15'

CHECK VALUES FOR REAR AXLE TOE

Number	Designation		Model 166 AMG	Model 292 except code 489
BE40.20-P-1002-10P	Permissible difference in rear axle toe between right and left sides of vehicle	∠°	±15'	±7'

CHECK VALUES FOR REAR AXLE TOE

Number	Designation		Model 292 with code 489	Model 292 AMG
BE40.20-P-1002-10P	Permissible difference in rear axle toe between right and left sides of vehicle	∠°	±7'	±15'

TIE ROD

Number	Designation		Model 166	Model 292
BA35.20-P-1001-04F	Self-locking nut, tie rod to rear axle carrier	Nm	90	90
