Attach/Detach Engine Hoist - AR33.10-P-0105EW

Model 166 with engine 157, 276, 278, 642, 651

Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278, 642, 651

Model 218 with engine 157, 274, 276, 278, 642, 651

Model 292 with engine 157, 276, 278, 642

Courtesy of MERCEDES-BENZ USA

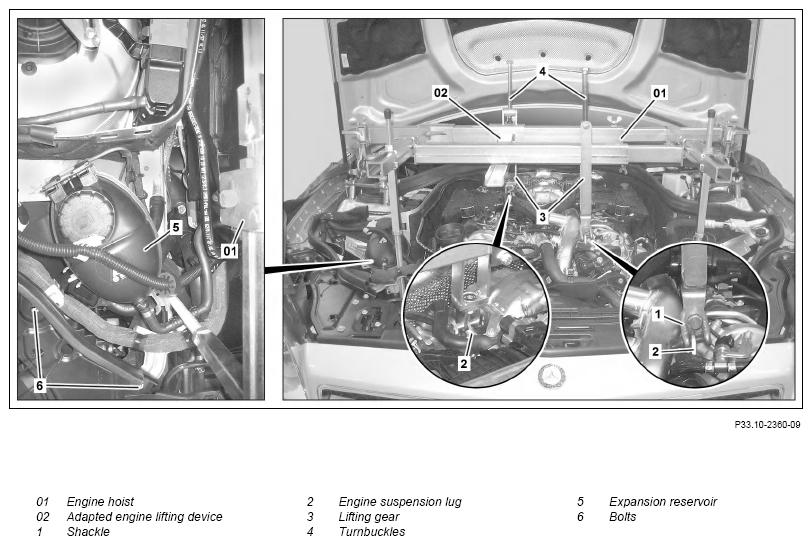

Shown on model 212 with engine 273

Courtesy of MERCEDES-BENZ USA

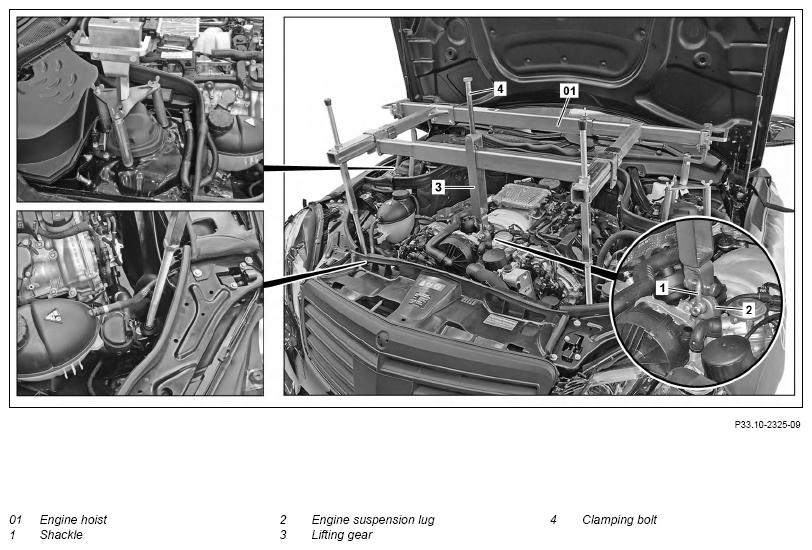

Shown on MODEL 218 with ENGINE 642

	Attach, remove
1	Switch off ignition and remove transmitter key
2	Open engine hood and raise to vertical position	Model 166 with engine 157, 276, 278, 642, 651 Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278, 642, 651 Model 218 with engine 157, 274, 276, 278, 642, 651 Model 292 with engine 157, 276, 278, 642 Model 166 with engine 157, 276, 278, 642, 651	AR88.40-P-1000GQ
		Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278, 642, 651	AR88.40-P-1000EW
3.1	Remove front engine cover	Model 166 with engine 157, 276, 278 Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278 Model 218 with engine 157, 274, 276, 278 Model 292 with engine 157, 276, 278
3.2	Remove upper engine cover	Model 166 with engine 642, 651 Model 212 with engine 642, 651 Model 218 with engine 642, 651 Model 292 with engine 642
4	Remove bolts (6) for engine wiring harness bracket	Model 218 with engine 276, 642
5	Unclip expansion reservoir (5) and place to one side	Model 218 with engine 157, 274, 276, 278, 642, 651
6	Remove cover on left and right suspension strut tower	Model 166 with engine 157, 276, 278, 642, 651 with code 489 (AIRMATIC) Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278, 642, 651 with code 489 (AIRMATIC) Model 218 with engine 157, 274, 276, 278, 642, 651 with code 489 (AIRMATIC) Model 292 with engine 157, 276, 278, 642 with code 489 (AIRMATIC)
7	Remove air intake box
8	Mount adapter to adaptation plates	Model 166 with engine 157, 276, 278, 642, 651 Model 292 with engine 157, 276, 278, 642 Adapter kit	Fig 4
		Adaptation plates	Fig 5
9	Mount adaptation plates to engine hoist (01)	The spring tower support of the engine hoist (01) cannot be used.
		Engine lifting device	Fig 3
		Adaptation plates	Fig 5
10	Unclip expansion reservoir for ACTIVE CURVE SYSTEM and place to one side	Model 166 with engine 157, 276, 278, 642, 651 with code 468 (ACTIVE CURVE SYSTEM) Model 292 with engine 157, 276, 278, 642 with code 468 (ACTIVE CURVE SYSTEM)
11	Adjust threaded rods of engine hoist (01) to match longitudinal members	Model 166 with engine 157, 276, 278, 642, 651 Model 292 with engine 157, 276, 278, 642 Make sure that the threaded rods are positioned on the longitudinal members.
		Adapter kit	Fig 4
12	Position loosely preassembled engine hoist (01) onto suspension strut towers with the aid of an assistant and guide into threaded rods	Position the engine hoist (01) carefully. Adjacent components and painted surfaces could be damaged otherwise. Helper required. Observe the manufacturer's assembly specifications and safety information.
13	Mount adaptation for engine hoist (02) to engine hoist (01)	Model 218 with engine 642, 651
		Adaptation of engine lifting device	Fig 2
14	Mount front lifting eye onto engine	Model 166, 212, 218, 292 with engine 157, 278	AR33.10-P-0105-01SX
		Bolt, lifting eye to cylinder head	*BA01.30-P-1006-01X
		Lifting eye	Fig 1
15	Fasten shackle (1) onto engine suspension lugs (2) or lifting eye	Lifting eye	Fig 1
16	Align engine hoist (01) and tighten bolted connections
17	Tighten lifting gear (3) using rigging screw (4)	Where several lifting gear devices (3) are used they must be uniformly aligned.
18	Detach in the reverse order
