Routing Diagram For Poly V-Belt - AR13.22-P-3902-02TI

Engine 642

Engine with hydraulic power steering pump

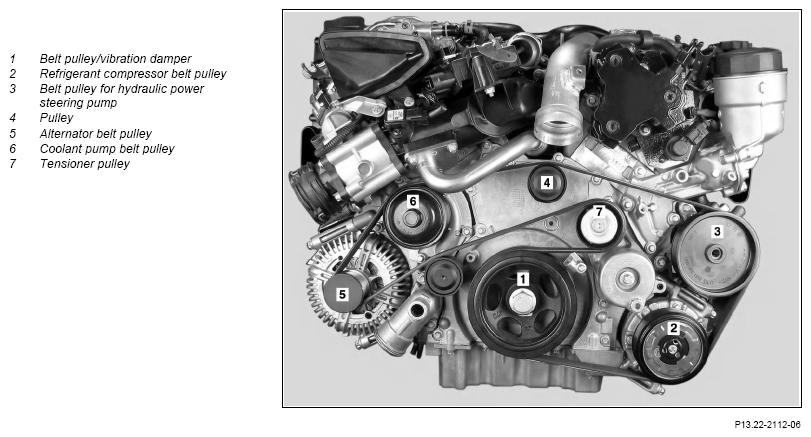

Fig 1: Drive Belt Routing Diagram - Engine 642 With Hydraulic Power Steering Pump
G14134257Courtesy of MERCEDES-BENZ USA

Engine with code 468 (Active Curve System)

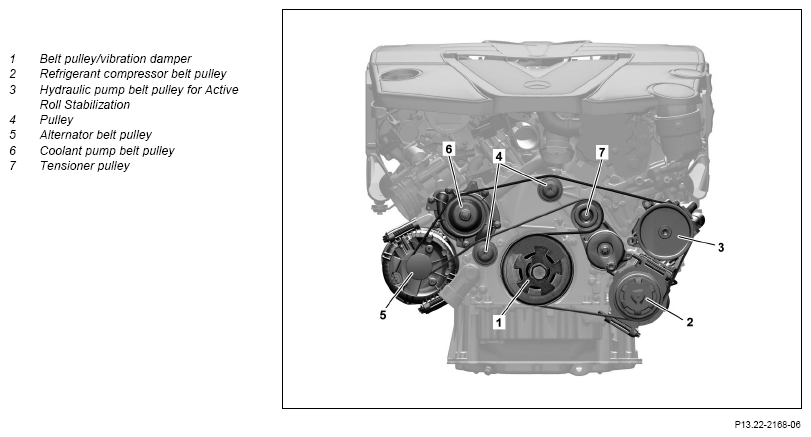

Fig 2: Drive Belt Routing Diagram - Engine 642 With Code 468
G14134258Courtesy of MERCEDES-BENZ USA
