Check Visible Area Of Poly-V Belt For Wear - AP13.22-P-1352CW

Model 117, 156, 166 (except 166.063), 176, 204, 207, 212, 218, 242, 246, 292

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of death  caused by vehicle slipping or toppling off during lifting	Only lift vehicle at the lift support points specified by the vehicle manufacturer.	AS00.00-Z-0032-01A
	Preparatory activity
1	Open engine hood and raise to vertical position	Model 117, 156, 166 (except 166.063), 176, 204, 207, 212, 218, 242, 246, 292
		Model 166 (except 166.063)	AR88.40-P-1000GQ
		Model 204.3, 207, 212	AR88.40-P-1000EW
		Model 204, 207, 212 with code U60 (Active Bonnet (Pedestrian protection)) Moving the engine hood to the vertical position:  Remove left and right tensioning lever at top from left and right hinge.
	Check

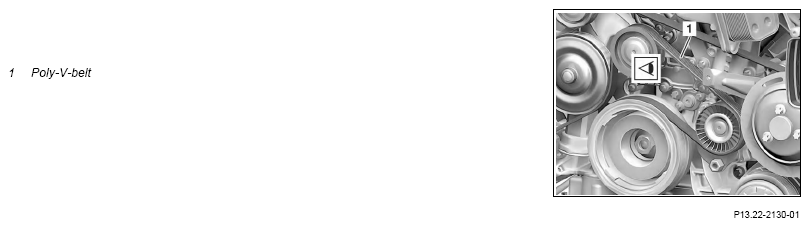

2	Check poly-V-belt (1) from above at visible areas for signs of wear and damage, and compare with damage profiles	Model 117 with engine 133, 270, 607, 651	AP13.22-P-1351-01A
		Model 156 with engine 133, 270, 607, 651 Model 166 (except 166.063) with engine 157, 276, 278, 642, 651 Model 176 with engine 133, 270, 607, 651 Model 204 with engine 156, 271, 272, 274, 276, 642, 646, 651 Model 207 with engine 271, 272, 273, 274, 276, 278, 642, 651 Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278, 642, 651 Model 218 with engine 157, 274, 276, 278, 642, 651 Model 242 with engine 270 Model 246 with engine 270, 607, 651 Model 292 with engine 157, 276, 278, 642 If wear or damage present ↓ Replace poly-V-belt (1) subject to separate repair order.
	Remove
3.1	Remove bottom sections of soundproofing	Model 117, 176, 246 with engine 607, 651 Model 204 with engine 642, 646, 651 Model 207, 212, 218 with engine 642, 651
		Model 117, 176, 246 with engine 607, 651	AR94.30-P-5300NKB
		Model 204 (except 204.9) with engine 642, 646, 651 Model 207, 212, 218 with engine 642, 651	AR94.30-P-5300EW
3.2	Remove bottom engine compartment paneling	Model 117, 176 with engine 133 Model 117, 176, 242, 246 with engine 270 Model 156 Model 204 (except 204.9) with engine 156, 271, 272, 274, 276 Model 204.9 Model 207 with engine 271, 272, 273, 274, 276, 278 Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278 Model 218 with engine 157, 274, 276, 278
		Model 117, 176 with engine 133 Model 117, 176, 242, 246 with engine 270 Model 156	AR61.20-P-1105NKB
		Model 204.9	AR61.20-P-1105CY
		Model 204 (except 204.9) with engine 156, 271, 272, 274, 276 Model 207 with engine 271, 272, 273, 274, 276, 278 Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278 Model 218 with engine 157, 274, 276, 278	AR61.20-P-1105EW
3.3	Remove underfloor paneling	Model 166 (except 166.063), 292
			AR61.30-P-1001GQ
	Check
4	Check poly-V-belt (1) on raised vehicle at visible areas for wear and damage, and compare against damage profiles	Model 117 with engine 133, 270, 607, 651 Model 156 with engine 133, 270, 607, 651 Model 166 (except 166.063) with engine 157, 276, 278, 642, 651 Model 176 with engine 133, 270, 607, 651 Model 204 with engine 156, 271, 272, 274, 276, 642, 646, 651 Model 207 with engine 271, 272, 273, 274, 276, 278, 642, 651 Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278, 642, 651 Model 218 with engine 157, 274, 276, 278, 642, 651 Model 242 with engine 270 Model 246 with engine 270, 607, 651 Model 292 with engine 157, 276, 278, 642 If wear or damage present ↓ Replace poly-V-belt (1) subject to separate repair order.	AP13.22-P-1351-01A
	Install
5.1	Install front underfloor paneling	Model 166 (except 166.063), 292
			AR61.30-P-1001GQ
5.2	Install lower engine compartment paneling	Model 117, 176 with engine 133 Model 117, 176, 242, 246 with engine 270 Model 156 Model 204 (except 204.9) with engine 156, 271, 272, 274, 276 Model 204.9 Model 207 with engine 271, 272, 273, 274, 276, 278 Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278 Model 218 with engine 157, 274, 276, 278
		Model 117 with engine 133, 270 Model 156 Model 176 with engine 133, 270 Model 242 with engine 270 Model 246 with engine 270	AR61.20-P-1105NKB
		Model 204.9	AR61.20-P-1105CY
		Model 204 (except 204.9) with engine 156, 271, 272, 274, 276 Model 207 with engine 271, 272, 273, 274, 276, 278 Model 212 with engine 156, 157, 271, 272, 273, 274, 276, 278 Model 218 with engine 157, 274, 276, 278	AR61.20-P-1105EW
5.3	Install bottom section of soundproofing	Model 117, 176, 246 with engine 607, 651 Model 204 with engine 642, 646, 651 Model 207, 212, 218 with engine 642, 651
		Model 117, 176, 246 with engine 607, 651	AR94.30-P-5300NKB
		Model 204 (except 204.9) with engine 642, 646, 651	AR94.30-P-5300EW
	Finishing activity
6	Close engine hood	Model 117, 156, 176, 204, 242, 246
		Model 204.3 Model 204 with code U60 (Active Bonnet (Pedestrian protection)) Close engine hood:  Mount left and right tensioning lever at top to left and right hinge.	AR88.40-P-1000EW
