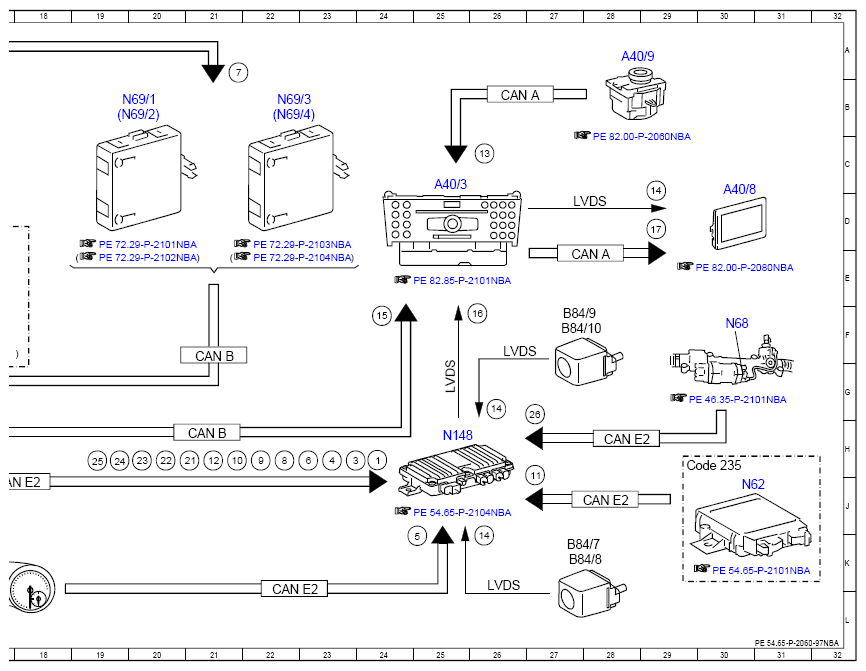

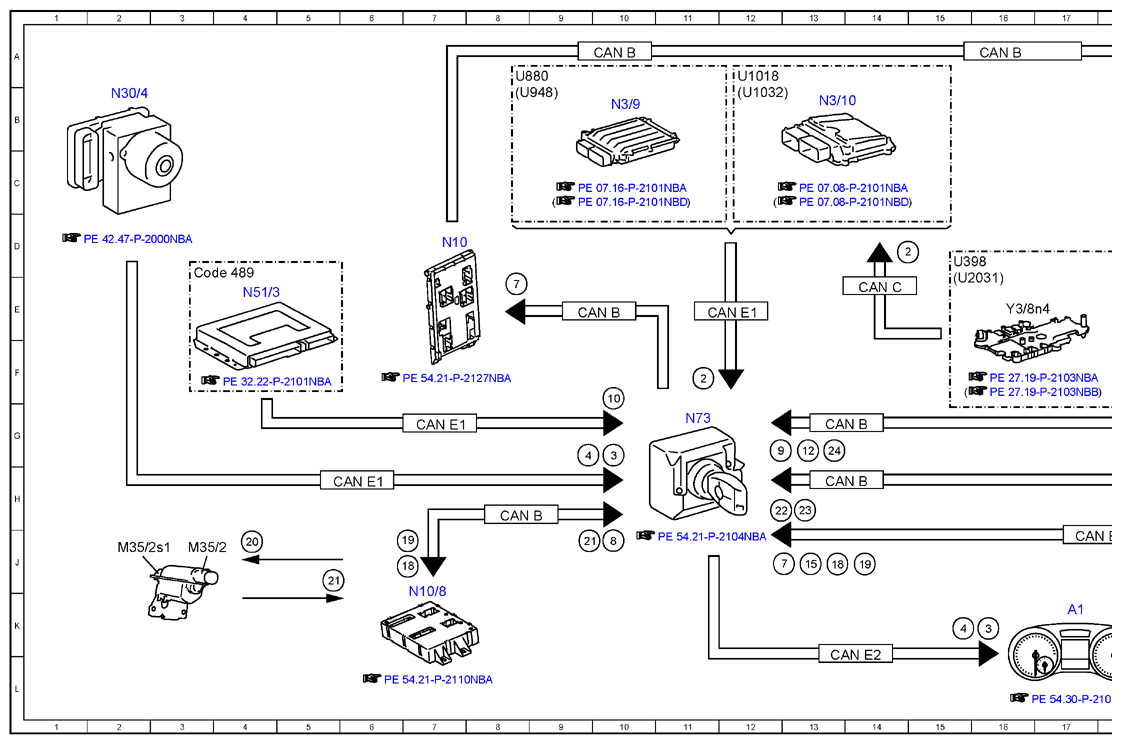

Electrical Function Schematic For 360 Degree Viewing System - PE54.65-P-2060-97NBA
MODEL 166
As Of Model Year 2016
With Code 501 (360° Camera)
MODEL 292
With Code 501 (360° Camera)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 24H |
| 10 | Vehicle level, status | 10F |
| 10 | Vehicle level, status | 21H |
| 11 | Parking system control unit, status | 27J |
| 12 | Mirror housing position, signal | 21H |
| 12 | Mirror housing position, signal | 13G |
| 13 | Audio/COMAND control panel, status | 26C |
| 14 | Low voltage differential signal video signal data transfer, signal | 26K |
| 14 | Low voltage differential signal video signal data transfer, signal | 26G |
| 14 | Low voltage differential signal video signal data transfer, signal | 29D |
| 15 | 360° camera display, request | 13J |
| 15 | 360° camera display, request | 24F |
| 16 | Composite Video Baseband Signal | 26F |
| 17 | Switch-on request, signal | 29D |
| 18 | "Open" rear camera cover, request | 14H |
| 18 | "Open" rear camera cover, request | 13J |
| 19 | "Close" rear camera cover, request | 14H |
| 19 | "Close" rear camera cover, request | 14J |
| 2 | Gear range, status | 11F |
| 2 | Gear range, status | 14D |
| 20 | Rear camera cover motor, actuation | 4J |
| 21 | Rear camera cover motor switch, status | 5J |
| 21 | Rear camera cover motor switch, status | 10H |
| 21 | Rear camera cover motor switch, status | 21H |
| 22 | Operation, signal | 12H |
| 22 | Operation, signal | 20H |
| 23 | 360° camera service mode, request | 20H |
| 23 | 360° camera service mode, request | 13H |
| 24 | 360° camera function, status | 19H |
| 24 | 360° camera function, status | 13G |
| 25 | Reverse gear, status | 19H |
| 26 | Front wheel angle, signal | 27H |
| 3 | Wheel speed, signal | 10G |
| 3 | Wheel speed, signal | 16K |
| 3 | Wheel speed, signal | 23H |
| 4 | Wheel rotation direction, signal | 9G |
| 4 | Wheel rotation direction, signal | 15K |
| 4 | Wheel rotation direction, signal | 23H |
| 5 | Vehicle speed, signal | 25K |
| 6 | Steering wheel angle, signal | 23H |
| 7 | Ambient lamp, request | 13J |
| 7 | Ambient lamp, request | 8E |
| 7 | Ambient lamp, request | 21A |
| 8 | Tailgate rotary tumbler switch, status | 10J |
| 8 | Tailgate rotary tumbler switch, status | 22H |
| 9 | Door rotary tumbler switch, status | 12G |
| 9 | Door rotary tumbler switch, status | 22H |
| A1 | Instrument cluster | 17K |
| A40/3 | COMAND control unit | 25C |
| A40/8 | Audio/COMAND display | 30D |
| A40/9 | Audio/COMAND control panel | 28A |
| B84/10 | Rear end 360° camera | 27F |
| B84/7 | Left side 360° camera | 27K |
| B84/8 | Right side 360° camera | 27K |
| B84/9 | Front end 360° camera | 27F |
| CAN A | Telematics CAN | 27E |
| CAN A | Telematics CAN | 26B |
| CAN B | Interior CAN | 16A |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 13G |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 10A |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 21H |
| CAN C | Drive train CAN | 14E |
| CAN E1 | Chassis CAN 1 | 6H |
| CAN E1 | Chassis CAN 1 | 7G |
| CAN E1 | Chassis CAN 1 | 12E |
| CAN E2 | Chassis CAN 2 | 17J |
| CAN E2 | Chassis CAN 2 | 14L |
| CAN E2 | Chassis CAN 2 | 22L |
| CAN E2 | Chassis CAN 2 | 28J |
| CAN E2 | Chassis CAN 2 | 28H |
| Code 235 | APC 2.0 Active Parking Guidance incl. Parktronic | 29H |
| Code 489 | AIRMATIC | 3E |
| LVDS | Low voltage differential signal | 26K |
| LVDS | Low voltage differential signal | 26F |
| LVDS | Low voltage differential signal | 25G |
| LVDS | Low voltage differential signal | 27D |
| M35/2 | Rear camera cover motor | 3J |
| M35/2s1 | Rear camera cover motor switch | 2J |
| N10 | SAM control unit | 7D |
| N10/8 | Rear control unit | 7K |
| N148 | 360° camera control unit | 25H |
| N3/10 | ME-SFI [ME] control unit | 13B |
| N3/9 | CDI control unit | 10B |
| N30/4 | Electronic Stability Program control unit | 2B |
| N51/3 | AIRMATIC control unit | 4E |
| N62 | Parking system control unit | 30J |
| N68 | Electrical power steering control unit | 30F |
| N69/1 | Left front door control unit | 20B |
| N69/2 | Right front door control unit | 19B |
| N69/3 | Left rear door control unit | 22B |
| N69/4 | Right rear door control unit | 22B |
| N73 | Electronic ignition switch control unit | 11G |
| U1018 | Valid for gasoline engine 276 | 12A |
| U1032 | Valid for engine 278 and 157 | 12B |
| U2031 | Valid for transmission 724 | 15E |
| U398 | Valid for transmission 725 (NAG3) | 15D |
| U880 | Valid for engine 642 | 8A |
| U948 | Valid for diesel engine 651 | 8B |
| Y3/8n4 | Fully integrated transmission control control unit | 16E |
