Remove/Install Instrument Cluster - AR54.30-P-6015GQ
MODEL 166, 292
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and store basic data of instrument cluster (A1) | When replacing the instrument cluster (A1). | |
| AD00.00-P-2000-04A | |||
| 2 | Move steering wheel to rear and down | ||
| 3 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||
| 4 | Remove left trim piece of instrument panel | AR68.10-P-1180GQ | |

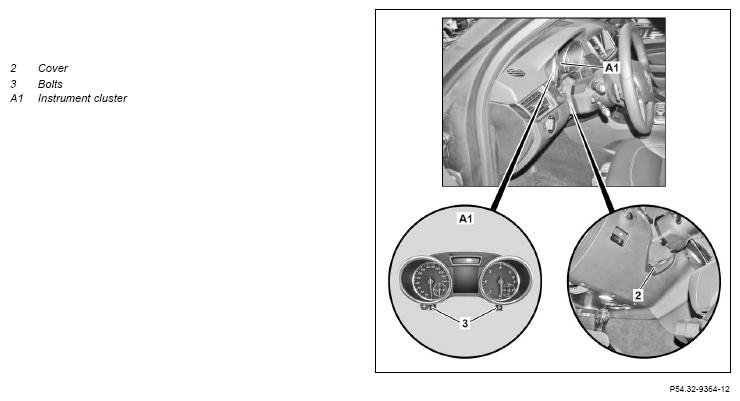

| 5 | Unclip cover (2) from lower trim of instrument panel | Fig 2 | |
| 6 | Remove screws/bolts (3) from instrument cluster (A1) | ||
| 7 | Unclip instrument cluster (A1) from instrument panel | Fig 2 | |
| 8 | Detach electrical connectors from instrument cluster (A1) | ||
| 9 | Remove instrument cluster (A1) | ||
| 10 | Install in the reverse order | ||
| Initial startup | |||
| 11 | Perform SCN coding | When replacing the instrument cluster (A1). | AR54.21-P-0015X |
| 12 | Transfer previously stored basic data of old instrument cluster (A1) to new instrument cluster (A1) | When replacing the instrument cluster (A1). | |
| AD00.00-P-2000-04A | |||
| 13 | Perform initial startup of instrument cluster (A1) | When replacing the instrument cluster (A1). | |
| AD00.00-P-2000-04A |
