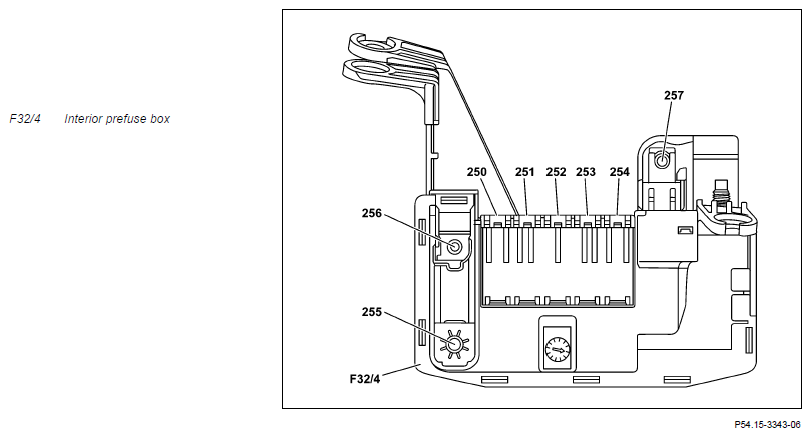

(Fuse Assignment Of Pre-Fuse Box In Interior Compartment On Passenger'S Side - GF54.15-P-1256-11GR)
Model 166
up to Model year 2016
When "ATO" and "MAXI" fuses are changed, they must always be replaced with fuses that comply with the Mercedes-Benz standard: MBN10153-2.
| Slot | Fuse | Circuit | Line ID (line fused) | Fused component | Rating in amperes (A) |
|---|---|---|---|---|---|
| 250 | Electrical fuse 250 (F32/4f250) | 30 | 4.0 RDWH | SAM control unit (N10) | 40 |
| 251 | Electrical fuse 251 (F32/4f251) | 30 | 4.0 RDWH | SAM control unit (N10) | 40 |
| 252 | Electrical fuse 252 (F32/4f252) | 30 | 4.0 RDWH | SAM control unit (N10) | 40 |
| 253 | Electrical fuse 253 (F32/4f253) | 30 | 2.5 RDWH | Left front door control unit (N69/1) | 30 |
| 254 | Electrical fuse 254 (F32/4f254) | 30 | 2.5 RDWH | Left rear door control unit (N69/3) | 30 |
| 255 | Electrical fuse 255 (F32/4f255) | 30 | 25.0 RD | Battery compartment prefuse box (F33) | 200 |
| 256 | Electrical fuse 256 (F32/4f256) | 30 | 42.0 RD | Rear fuse box (F4) | 150 |
| 257 | Electrical fuse 257 (F32/4f257) | 30 | 16.0 RD | Valid for diesel engine: PTC heater booster (R22/3) |
150 |
