(Fuse Assignment Of Pre-Fuse Box In Engine Compartment - GF54.15-P-1256-25GR)
Model 166
up to Model year 2016

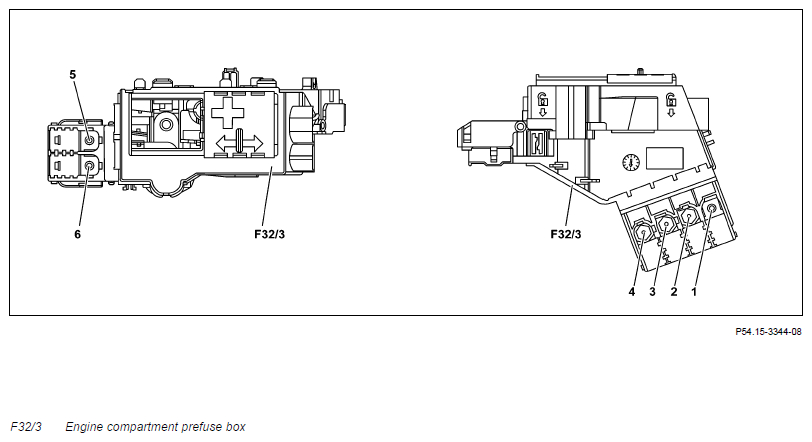

View from top, side view
The electrical fuse 7 (F32/3f7) and electrical fuse 8 (F32/3f8) are located within the plastic housing.
| Slot | Fuse | Circuit | Line ID (line fused) | Fused component | Rating in amperes (A) |
|---|---|---|---|---|---|
| 1 | Electrical fuse 1 (F32/3f1) | 30 | 4.0 RDWH | Electronic Stability Program control unit (N30/4) | 40 |
| 2 | Electrical fuse 2 (F32/3f2) | 30 | - | Spare | - |
| 3 | Electrical fuse 3 (F32/3f3) | 30 | 2.5 RDWH | Valid with CODE B03 (ECO start/stop function): Engine compartment fuse and relay module (F58) |
30 |
| 4 | Electrical fuse 4 (F32/3f4) | 30 | - | Spare | - |
| 5 | Electrical fuse 5 (F32/3f5) | 30 | 16.0 RD | Engine compartment fuse and relay module (F58) | 150 |
| 6 | Electrical fuse 6 (F32/3f6) | 30 | 12.0 RD | Fan motor (M4/7) | 125 |
| - | Fuse 7 | 30 | 35.0 RD | Interior prefuse box (F32/4) | 400 |
| - | Fuse 8 | 30 | 12.0 RD | Electrical power steering control unit (N68) | 100 |
