Remove/Install Electric Parking Brake Control Unit - AR42.20-P-0610GQA
MODEL 166.8
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

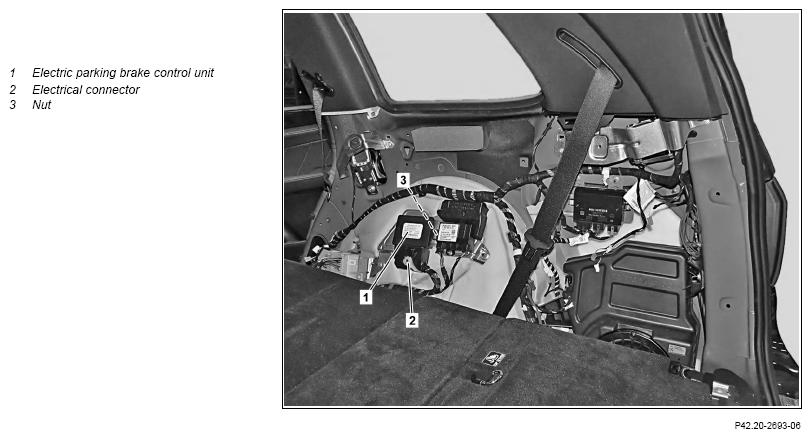

| Remove/install | |||
| 1 | Remove side paneling in trunk | AR68.30-P-4800GQX | |
| 2 | Disconnect electrical connector (2) | ||
| 3 | Unscrew nut (3) | ||
| 4 | Remove electric parking brake control unit (1) | ||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Perform initial startup of electric parking brake control unit (1) using diagnostic system | After replacing the electric parking brake control unit (1). | |
| AD00.00-P-2000-04A |
