Remove/Install Intelligent Servo Module - AR27.19-P-0550GQ
Transmission 722.9 in model 166
Transmission 722.9 in model 292
MODIFICATION NOTES
| 05.03.2020 | Document completely revised. |
Shown on model 166 with 4MATIC
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on Bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||
| Notes on self-locking nuts and Bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Release parking brake. | ||
| 2 | Disconnect ground line from battery. | AR54.10-P-0003GZ | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 3 | Remove appropriate section of underfloor paneling. | AR61.30-P-1001GQ | |
| 4 | Remove front propeller shaft from output flange to front axle of transfer case, place to one side, and fix in place. | Transmission 722.9 in model 166 (except 166.006/058) Transmission 722.9 in model 292 |
|
| Tightening procedure for front propeller shaft Transmission 722.9 in model 166 (except 166.006/058) Transmission 722.9 in model 292 |
AR41.10-P-0070-03GZ | ||
Transmission 722.9 in model 292 Self-locking Bolt, drive shaft to transfer case (to front axle) |
*BA41.10-P-1003-01F | ||
| Fig 2 | |||
| 5 | Remove rear engine crossmember and lower Transmission slightly. | Engine 157 in model 166 with Transmission 722.9 Engine 276 in model 166 with Transmission 722.9 Engine 278 in model 166 with Transmission 722.9 Engine 642 in model 166 with Transmission 722.9 |
AR22.10-P-1180GQ |
| Transmission 722.9 in model 292 with engine 642 |
AR22.10-P-4360OGR | ||

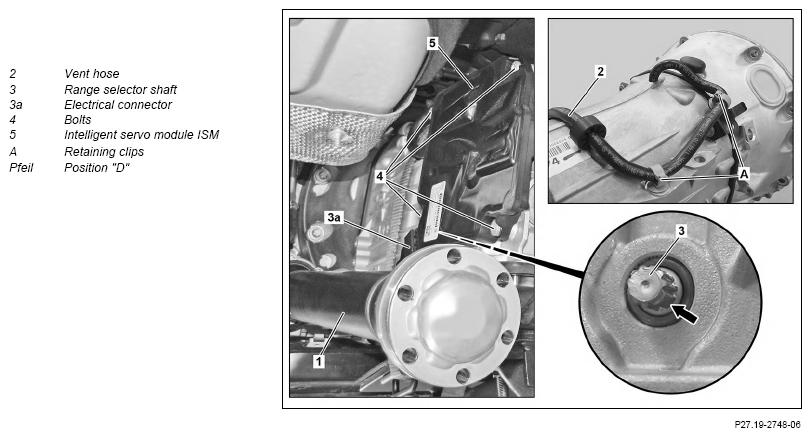

| 6 | Open retaining clips (A) of vent hose (2) on Transmission housing. | ||
| 7 | Release and disconnect electrical connector (3a) from intelligent servo module ISM (5). | ||
| 8 | Unscrew screws (4) from intelligent servo module ISM (5). | *BA27.40-P-1021-01A | |
| 9 | Remove intelligent servo module ISM (5) with vent hose (2). | If intelligent servo module ISM (5) is reused: ↓ Do not detach vent hose (2) because a leaky connecting point results in water entry. |
|
| 10.1 | Turn range selector shaft (3) of Transmission clockwise up to end stop at P-Parking position | When reusing intelligent servo module ISM (5). |
|
| Fig 1 | |||

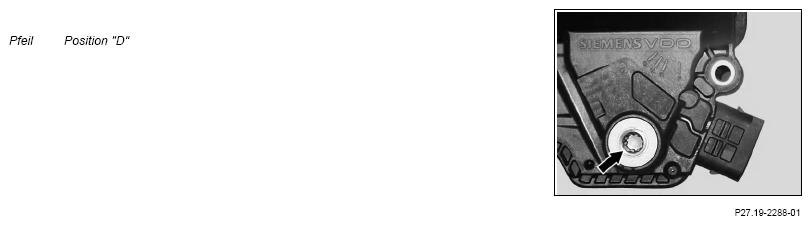

| 10.2 | Turn range selector shaft (3) of Transmission counterclockwise up to end stop at "D" position (arrow). | When replacing intelligent servo module ISM (5). |
|
| Fig 1 | |||
| 11 | Replace vent hose (2) of intelligent servo module ISM (5). | When replacing intelligent servo module ISM (5). | |
| 12 | Install in the reverse order. | ||
| 13.1 | Read out fault memory with vehicle diagnosis system and delete if necessary. | When reusing intelligent servo module ISM (5). | |
| AD00.00-P-2000-04A | |||
| 13.2 | Commission intelligent servo module ISM (5). | When replacing intelligent servo module ISM (5). | |
| AD00.00-P-2000-04A |
HOUSING
| Number | Designation | Transmission 722.9 | ||
|---|---|---|---|---|
| BA27.40-P-1021-01A | Standard Bolt/hexagon-spacer Bolt, shift module (ISM) to Transmission housing | Stage 1 | Nm | 4 |
| Stage 2 | ∠ ° | 90 | ||
PROPELLER SHAFT
| Number | Designation | Model 166 | Model 292 | ||
|---|---|---|---|---|---|
| BA41.10-P-1003-01F | Self-locking Bolt, drive shaft to transfer case (to front axle) | Stage 1 | Nm | 40 | 40 |
| Stage 2 | ∠ ° | 90 | 90 | ||
