Sheet Metal Crimping Pliers For Areas Not Easily Accessible - WF58.50-P-6350-01SC

Model 166, 204, 207, 212, 216, 218

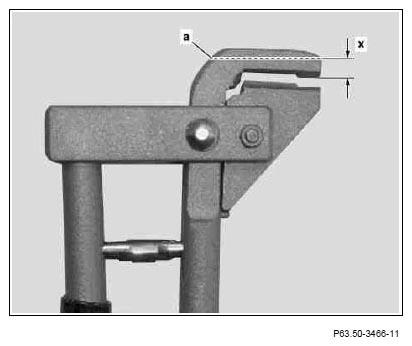

1. Mark separation line (a) in accordance with dimension (x) on the sheet metal crimping pliers.

   Dimension (x) is 6 mm.

2. Grind off upper part of sheet metal crimping pliers up to separation line (a).
