(Wiring Diagram Tachograph - PE54.61-P-2100-97NAA)
MODEL 166 up to model year 2016
with CODE 930 (Pre-installation for tachograph)
Control unit N154
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 23L |

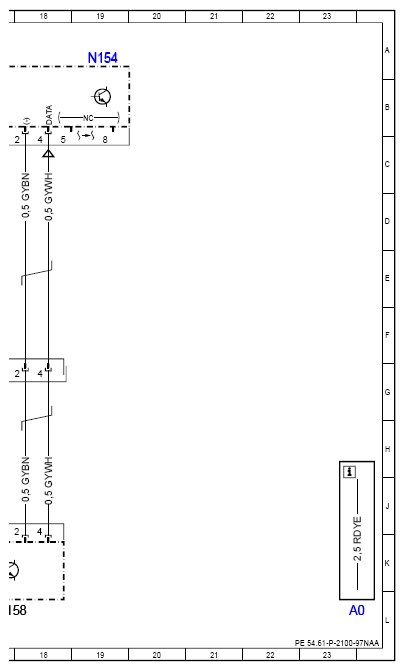

| B158 | Digital tachograph distance and speed sensor | 17L |
| F33 | Battery compartment prefuse box | 3L |
| F33f45 | Fuse 45 | 2L |
| F4 | Rear fuse box | 11L |
| F4f120 | Fuse 120 | 10L |
| N10 | SAM control unit | 7L |

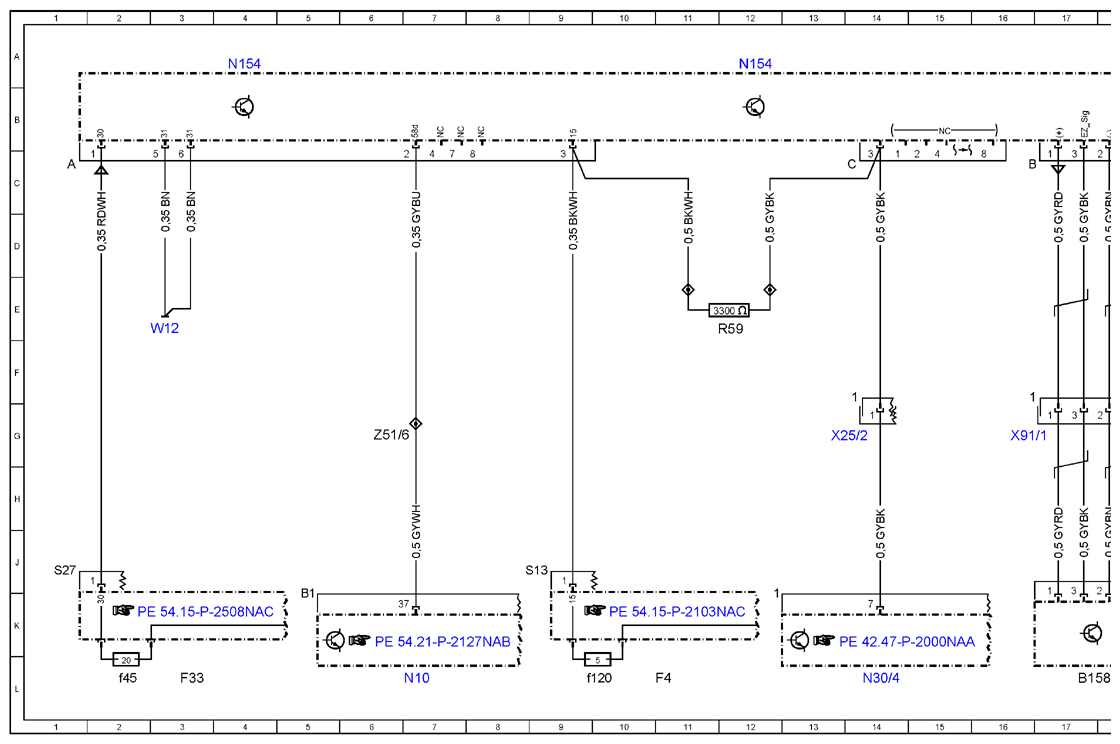

| N154 | Digital tachograph control unit | 4A |
| N154 | Digital tachograph control unit | 12A |
| N154 | Digital tachograph control unit | 19A |
| N30/4 | Electronic Stability Program control unit | 14L |
| R59 | Digital tachograph pull-up resistor | 12E |
| W12 | Ground point (center console) | 3E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 14G |
| Z51/6 | Circuit 58d vehicle interior connector sleeve | 6G |
