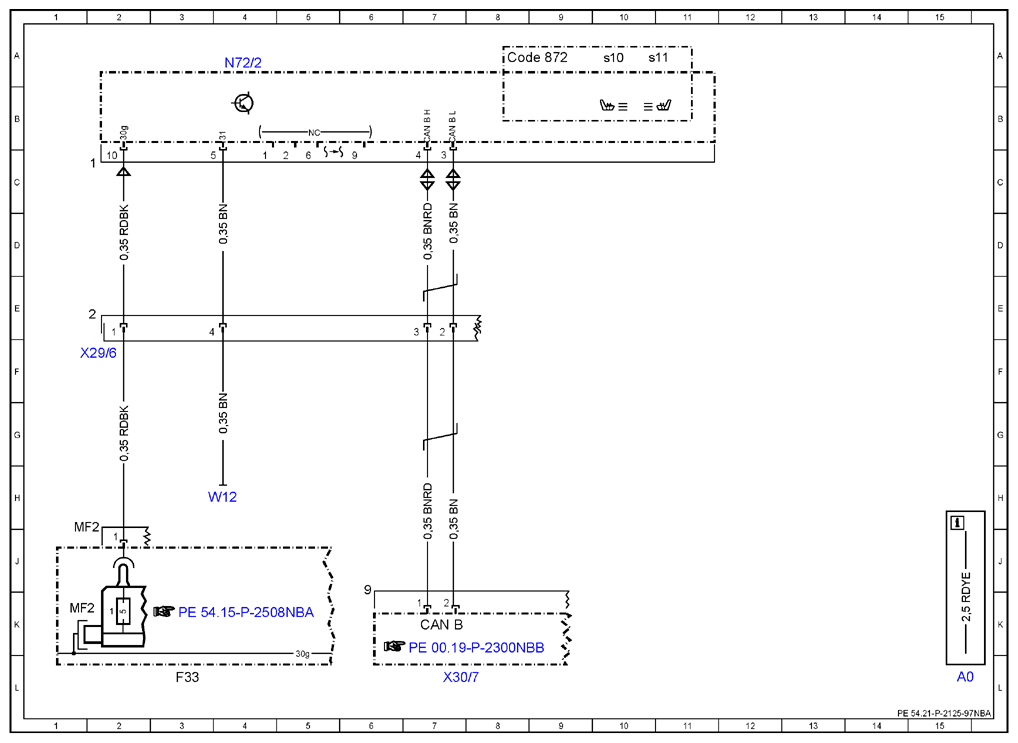

Wiring Diagram For Rear Control Panel Control Unit - PE54.21-P-2125-97NBA
Model 166
as of model year 2016
with code 581 (Automatic air conditioning)
with code 872 (Left and right rear seat heating)
Control unit N72/2
Model 292
with code 581 (Automatic air conditioning)
with code 872 (Left and right rear seat heating)
Control unit N72/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| CAN B | Interior CAN | 7K |
| Code 872 | Left and right rear seat heaters | 8A |
| F33 | Battery compartment prefuse box | 3L |
| F33MF2 | Multiple fuse 2 | 1K |
| N72/2 | RCP [HBF] control unit | 4A |
| N72/2s10 | Left rear seat heater button, 2nd seat row | - |
| N72/2s11 | Right rear seat heater button, 2nd seat row | - |
| W12 | Ground point (center console) | 4H |
| X29/6 | Center console electrical connector | 2F |
| X30/7 | Left potential distributor electrical connector (CAN) | 7L |
