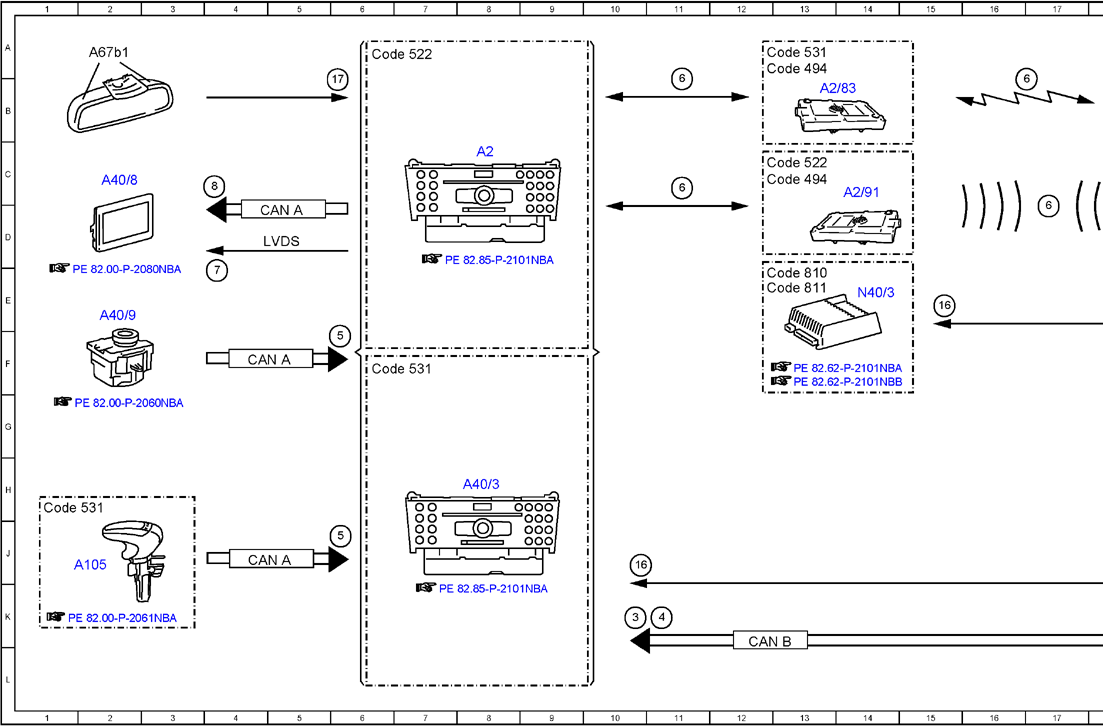

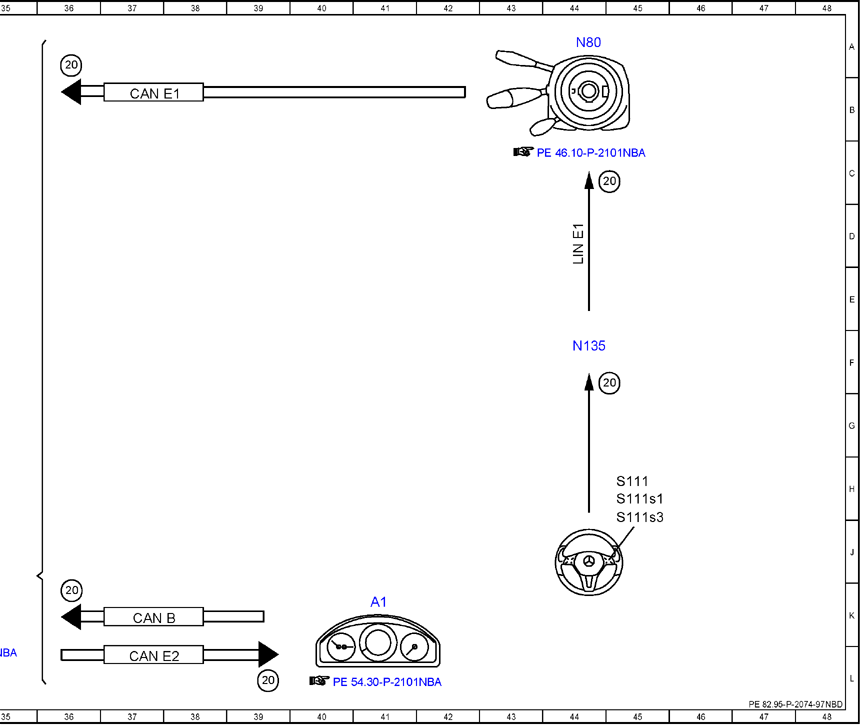

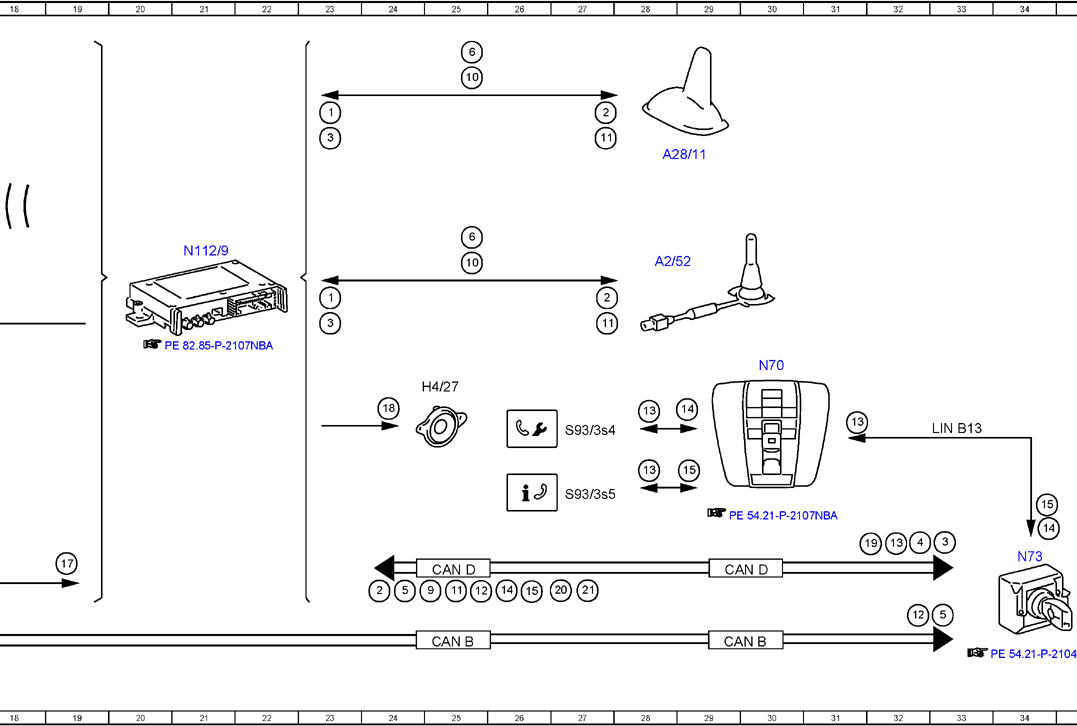

Electrical Function Schematic For Telematics Services, Function - PE82.95-P-2074-97NBD
Model 166, 292 as of model year 2017
with code 362 (HERMES communications module LTE)
with code 460 (Canada version)
except code 05U (Remote Online)
except code 06U (Mercedes connect me standard services)
except code 348 (Emergency call/assistant system)
except code 360 (HERMES UMTS)
Model 166, 292 as of model year 2017
with code 362 (HERMES communications module LTE)
with code 494 (US version)
except code 05U (Remote Online)
except code 06U (Mercedes connect me standard services)
except code 348 (Emergency call/assistant system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle data, request | 23E |
| 1 | Vehicle data, request | 23B |
| 10 | Telephone, signal | 22c |
| 10 | Telephone, signal | 26c |
| 11 | ATA [EDW] alarm, signal | 25J |
| 11 | ATA [EDW] alarm, signal | 25J |
| 11 | ATA [EDW] alarm, signal | 25J |
| 12 | Position data, signal | 25K |
| 12 | Position data, signal | 23J |
| 13 | Status indication, signal | 32J |
| 13 | Status indication, signal | 28F |
| 13 | Status indication, signal | 28G |
| 13 | Status indication, signal | 32G |
| 14 | Breakdown assistance, signal | 29G |
| 14 | Breakdown assistance, signal | 35D |
| 14 | Breakdown assistance, signal | 26J |
| 15 | MB-Info, signal | 29H |
| 15 | MB-Info, signal | 35D |
| 15 | MB-Info, signal | 26K |
| 16 | Mute function, signal | 15E |
| 16 | Mute function, signal | 10J |
| 17 | Voice input, signal | 6B |
| 17 | Voice input, signal | 6A |
| 18 | Voice output, signal | 24G |
| 19 | Open/close central locking, request | 32J |
| 2 | Vehicle data, signal | 24K |
| 2 | Vehicle data, signal | 28E |
| 2 | Vehicle data, signal | 28B |
| 20 | Multifunction steering wheel button group, signal | 36B |
| 20 | Multifunction steering wheel button group, signal | 36K |
| 20 | Multifunction steering wheel button group, signal | 39L |
| 20 | Multifunction steering wheel button group, signal | 36B |
| 20 | Multifunction steering wheel button group, signal | 45C |
| 20 | Multifunction steering wheel button group, signal | 27K |
| 21 | Central locking, status | 27K |
| 3 | Data from service center, signal | 10K |
| 3 | Data from service center, signal | 10K |
| 3 | Data from service center, signal | 23J |
| 3 | Data from service center, signal | 23B |
| 4 | Audio/COMAND display, message | 11K |
| 4 | Audio/COMAND display, message | 11K |
| 5 | Operation, signal | 6F |
| 5 | Operation, signal | 6J |
| 5 | Operation, signal | 24K |
| 5 | Operation, signal | 33K |
| 6 | Internet, signal | 11C |
| 6 | Internet, signal | 17C |
| 6 | Internet, signal | 25D |
| 6 | Internet, signal | 11B |
| 6 | Internet, signal | 17B |
| 6 | Internet, signal | 25A |
| 7 | Low voltage differential signal video signal data transfer, signal | 4E |
| 8 | Audio/COMAND display, actuation | 4C |
| 9 | Circuit 15, status | 25K |
| A1 | Instrument cluster | 41K |
| A105 | Touchpad | 2J |
| A2 | Radio | 8C |
| A2/52 | Emergency call system antenna | 28D |
| A2/83 | WLAN antenna | 13B |
| A2/91 | Bluetooth® antenna | 14C |
| A28/11 | Multifunction antenna | 28C |
| A40/3 | COMAND control unit | 8H |
| A40/8 | Audio/COMAND display | 2C |
| A40/9 | Audio/COMAND control panel | 2E |
| A67b1 | Hands-free system microphone group | 2A |
| CAN A | Telematics CAN | 4F |
| CAN A | Telematics CAN | 5D |
| CAN A | Telematics CAN | 4J |
| CAN B | Interior CAN | 25K |
| CAN B | Interior CAN | 12K |
| CAN B | Interior CAN | 29K |
| CAN B | Interior CAN | 37K |
| CAN D | Diagnostic CAN | 25J |
| CAN D | Diagnostic CAN | 29J |
| CAN E1 | Chassis CAN 1 | 37B |
| CAN E2 | Chassis CAN 2 | 37L |
| Code 494 | USA version | 12C |
| Code 494 | USA version | 12A |
| Code 522 | Audio 20 radio | 6A |
| Code 522 | Audio 20 radio | 12C |
| Code 531 | COMAND APS | 6F |
| Code 531 | COMAND APS | 12A |
| Code 531 | COMAND APS | 1H |
| Code 810 | Sound system | 12E |
| Code 811 | Extended sound system | 12E |
| H4/27 | Center instrument panel speaker | 25F |
| LIN B13 | Roof LIN | 33G |
| LIN E1 | Steering LIN | 44D |
| LVDS | Low voltage differential signal | 5D |
| N112/9 | HERMES control unit | 21D |
| N135 | Steering wheel electronics | 44F |
| N40/3 | Sound system amplifier control unit | 14E |
| N70 | Overhead control panel control unit | 30F |
| N73 | Electronic ignition switch control unit | 34J |
| N80 | Steering column module control unit | 44A |
| S111 | Right multifunction steering wheel button group | 45H |
| S111s1 | Buttons + and - for setting specific functions and volume control | 45H |
| S111s3 | Accept/terminate phone call button | 45J |
| S93/3s4 | Breakdown assistance button | 27G |
| S93/3s5 | MB-Info button | 27H |
