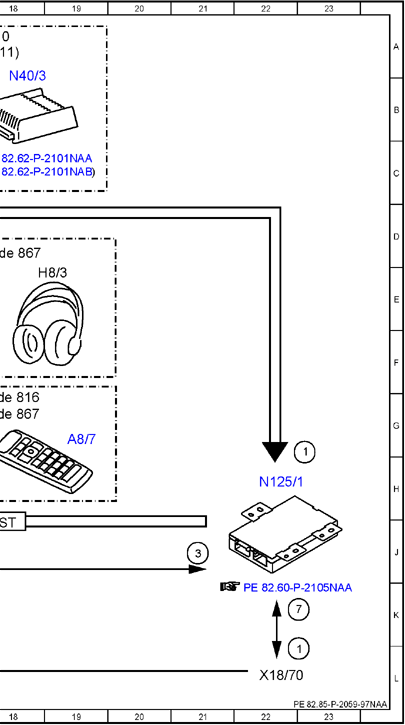

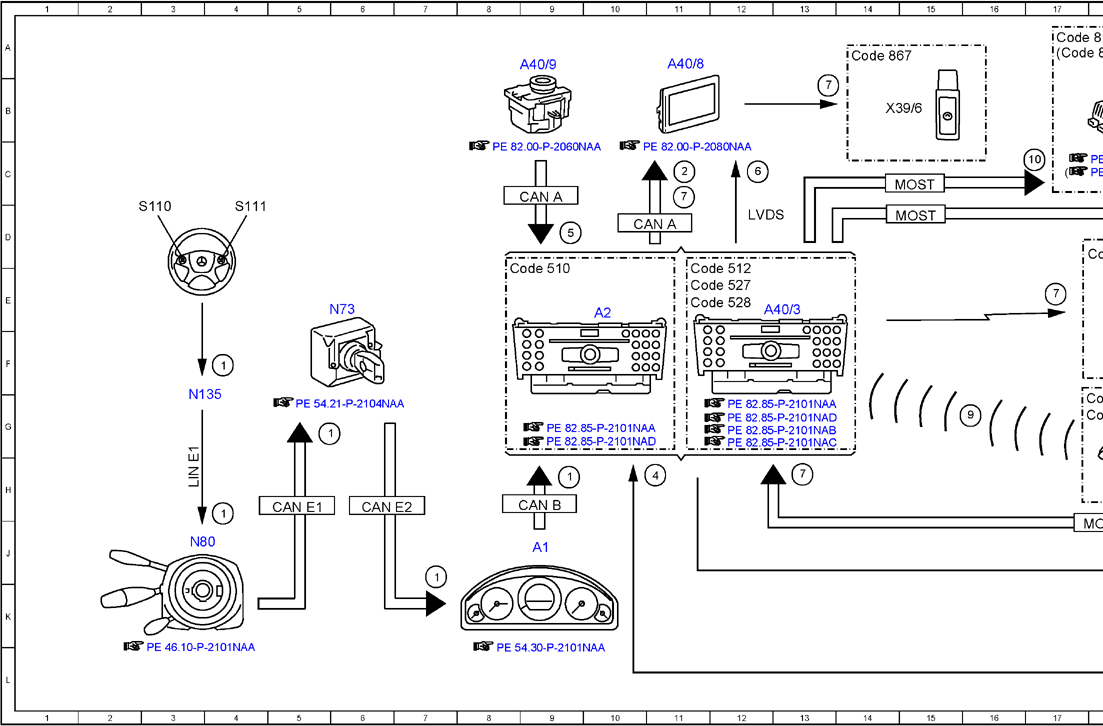

(Electrical Function Diagram For Media Interface, Function - PE82.85-P-2059-97NAA)
MODEL 166 up to model year 2016 with CODE 518 (Media interface)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 4F |
| 1 | Multifunction steering wheel button group, signal | 7J |
| 1 | Multifunction steering wheel button group, signal | 4H |
| 1 | Multifunction steering wheel button group, signal | 5G |
| 1 | Multifunction steering wheel button group, signal | 9H |
| 1 | Multifunction steering wheel button group, signal | 22L |
| 1 | Multifunction steering wheel button group, signal | 23G |
| 10 | Sound system amplifier, actuation | 17C |
| 2 | Switch-on request, signal | 11C |
| 3 | Wake-up, signal | 21J |
| 4 | Video, signal | 11H |
| 5 | Audio/COMAND controller, request | 9D |
| 6 | Audio/COMAND display, signal | 12C |
| 7 | Audio, signal | 13H |
| 7 | Audio, signal | 22K |
| 7 | Audio, signal | 17E |
| 7 | Audio, signal | 11C |
| 7 | Audio, signal | 13B |
| 9 | Operation, signal | 16G |
| A1 | Instrument cluster | 9J |
| A2 | Radio | 10E |
| A40/3 | COMAND control unit | 12E |
| A40/8 | Audio/COMAND display | 11A |
| A40/9 | Audio/COMAND control panel | 8A |
| A8/7 | Remote control | 19G |
| CAN A | Telematics CAN | 9C |
| CAN A | Telematics CAN | 11D |
| CAN B | Interior CAN | 9H |
| CAN E1 | Chassis CAN 1 | 5H |
| CAN E2 | Chassis CAN 2 | 6H |
| Code 510 | Audio 20 with CD changer | 8E |
| Code 512 | COMAND APS with DVD changer | 11E |
| Code 527 | COMAND APS (with navigation) | 11E |
| Code 528 | COMAND with DVD changer | 11E |
| Code 810 | Sound system | 17A |
| Code 811 | Extended sound system | 17A |
| Code 816 | Entertainment remote control | 17G |
| Code 867 | SPLITVIEW | 14A |
| Code 867 | SPLITVIEW | 17G |
| H8/3 | Radio frequency headphones | 19E |
| LIN E1 | Steering LIN | 3H |
| LVDS | Low voltage differential signal | 12D |
| MOST | Media Oriented System Transport | 18J |
| MOST | Media Oriented System Transport | 15D |
| MOST | Media Oriented System Transport | 15C |
| N125/1 | Media interface control unit | 22H |
| N135 | Steering wheel electronics | 3G |
| N40/3 | Sound system amplifier control unit | 18B |
| N73 | Electronic ignition switch control unit | 5E |
| N80 | Steering column module control unit | 3J |
| S110 | Left multifunction steering wheel button group | 2D |
| S111 | Right multifunction steering wheel button group | 4D |
| X18/70 | Media interface electrical connector | 22L |
| X39/6 | Headphones electrical connector (cabled) | 14B |
