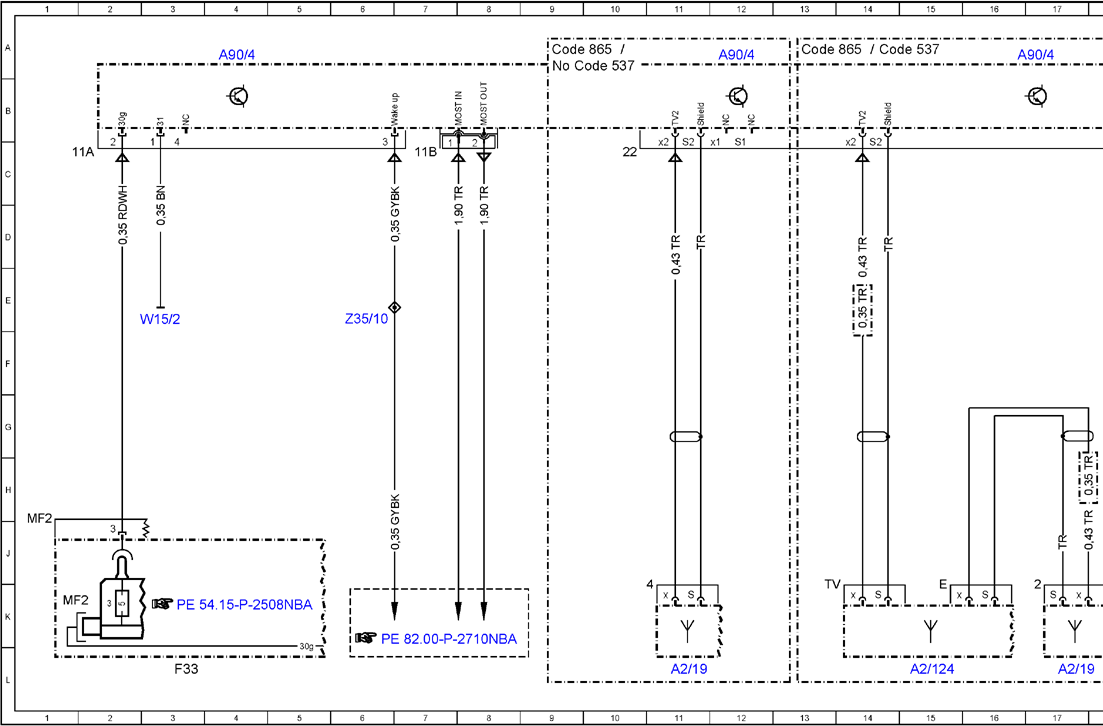

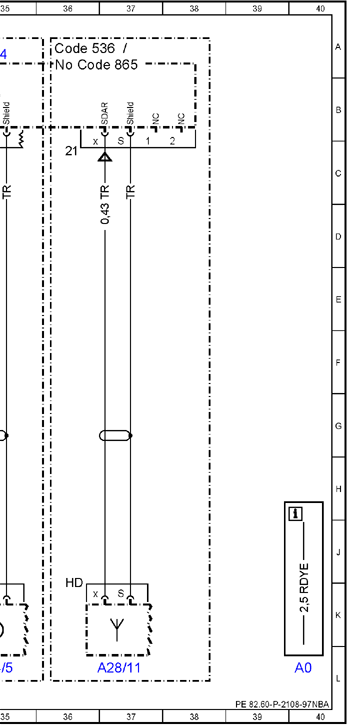

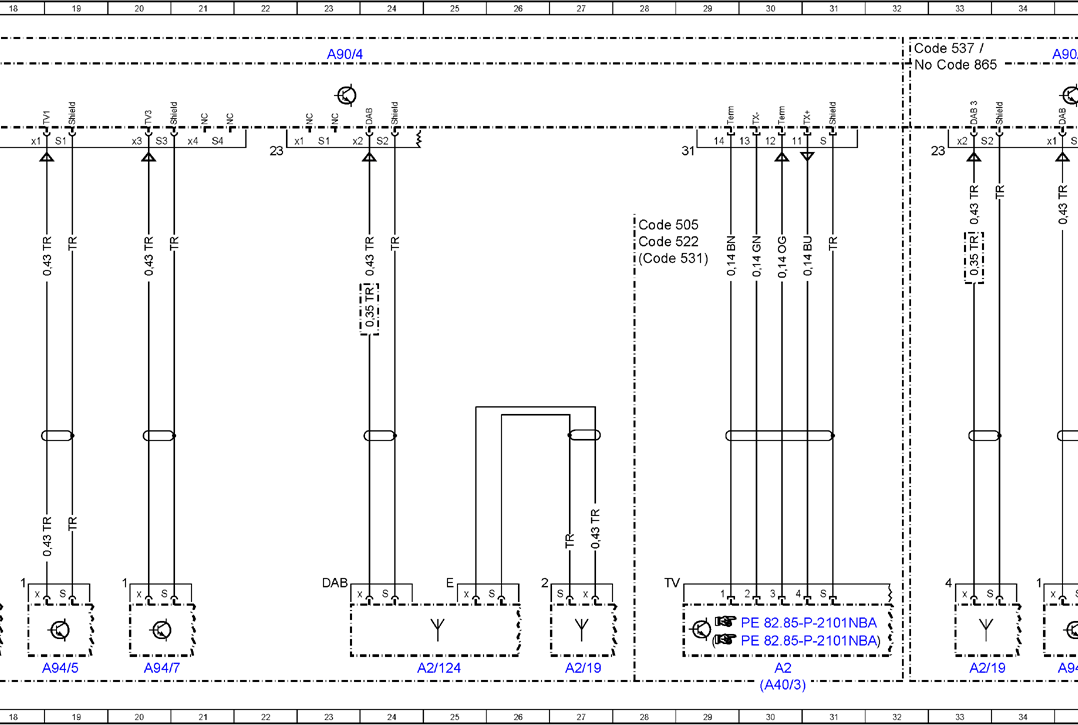

Wiring Diagram For Tuner Unit Control Unit - PE82.60-P-2108-97NBA
Model 166 as of model year 2016
with code 536 (Sirius satellite radio complete system)
with code 865 (digital TV)
with code 537 (DAB digital radio standard (Digital Audio Broadcast))
except code 197 (DVB-T2 conversion with ext. card reader/HD-TV Korea)
except code 381 (CI+BOX card reader for DVB-T2-standard) Control unit A90/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A2 | Radio | 30L |
| A2/124 | TV and DAB antenna splitter | 15L |
| A2/124 | TV and DAB antenna splitter | 25L |
| A2/19 | FM 2, DAB and TV antenna amplifier | 11L |
| A2/19 | FM 2, DAB and TV antenna amplifier | 17L |
| A2/19 | FM 2, DAB and TV antenna amplifier | 33L |
| A2/19 | FM 2, DAB and TV antenna amplifier | 27L |
| A28/11 | Multifunction antenna | 37L |
| A40/3 | COMAND control unit | 30L |
| A90/4 | Tuner unit | 4A |
| A90/4 | Tuner unit | 12A |
| A90/4 | Tuner unit | 17A |
| A90/4 | Tuner unit | 23A |
| A90/4 | Tuner unit | 35A |
| A94/5 | TV 1 antenna amplifier | 19L |
| A94/5 | TV 1 antenna amplifier | 35L |
| A94/7 | TV 3 antenna amplifier | 20L |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 28D |
| Code 522 | Audio 20 radio | 28D |
| Code 531 | COMAND APS | 28D |
| Code 536 | SIRIUS satellite radio | 36A |
| Code 537 | Digital radio | 14A |
| Code 537 | Digital radio | 32A |
| Code 537 | Digital radio | 9A |
| Code 865 | TV tuner | 9A |
| Code 865 | TV tuner | 13A |
| Code 865 | TV tuner | 33A |
| Code 865 | TV tuner | 36A |
| F33 | Battery compartment prefuse box | 3L |
| F33MF2 | Multiple fuse 2 | 1K |
| W15/2 | Left footwell ground point | 3E |
| Z35/10 | MOST wake-up signal connector sleeve | 6E |
