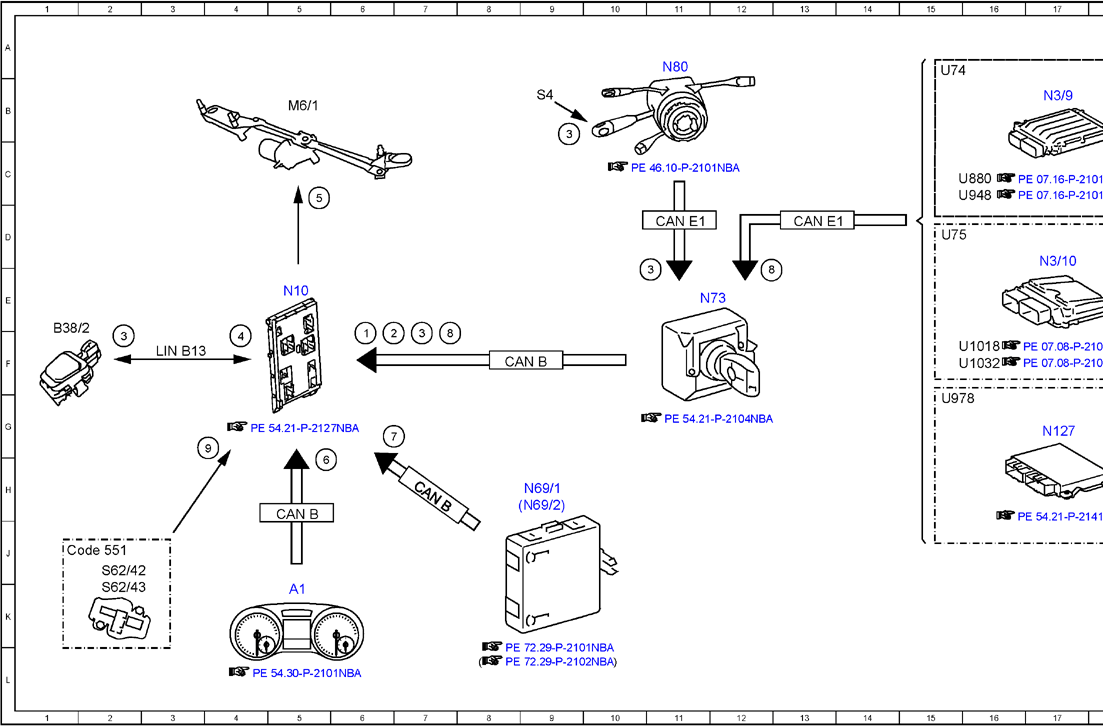

Electrical Function Schematic For Windshield Wiper - PE82.30-P-2051-97NBA
Model 166 as of model year 2016
Model 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6F |
| 2 | Circuit 50, status | 6F |
| 3 | Combination switch, status | 11E |
| 3 | Combination switch, status | 9B |
| 3 | Combination switch, status | 7F |
| 3 | Combination switch, status | 2F |
| 4 | Rain/light sensor, status | 4F |
| 5 | Wiper motor, actuation | 5C |
| 6 | Vehicle speed, signal | 5H |
| 7 | Door rotary tumbler switch, status | 6H |
| 8 | Gear range, status | 7F |
| 8 | Gear range, status | 12D |
| 8 | Gear range, status | 19C |
| 9 | Engine hood contact switch, status | 3G |
| A1 | Instrument cluster | 5K |
| B38/2 | Rain/light sensor with additional functions | 1F |
| CAN B | Interior CAN | 7H |
| CAN B | Interior CAN | 8F |
| CAN B | Interior CAN | 5H |
| CAN C | Drive train CAN | 20D |
| CAN E1 | Chassis CAN 1 | 11D |
| CAN E1 | Chassis CAN 1 | 13D |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 1J |
| LIN B13 | Roof LIN | 3F |
| M6/1 | Wiper motor | 5B |
| N10 | SAM control unit | 5E |
| N127 | Drivetrain control unit | 17G |
| N3/10 | ME-SFI [ME] control unit | 17D |
| N3/9 | CDI control unit | 17B |
| N69/1 | Left front door control unit | 9H |
| N69/2 | Right front door control unit | 9H |
| N73 | Electronic ignition switch control unit | 11E |
| N80 | Steering column module control unit | 11A |
| S4 | Combination switch | 9B |
| S62/42 | Right engine hood contact switch | 2J |
| S62/43 | Left engine hood contact switch | 2K |
| U1018 | Valid for gasoline engine 276 | 15F |
| U1032 | Valid for engine 278 and 157 | 15F |
| U74 | Valid for diesel engines | 15A |
| U75 | Valid for gasoline engines | 15D |
| U880 | Valid for engine 642 | 15C |
| U948 | Valid for diesel engine 651 | 15C |
| U978 | Valid for hybrid drive | 15G |

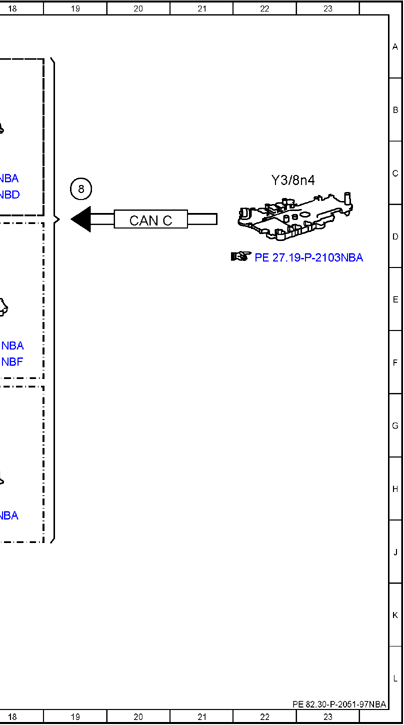

| Y3/8n4 | Fully integrated transmission control control unit | 22C |
