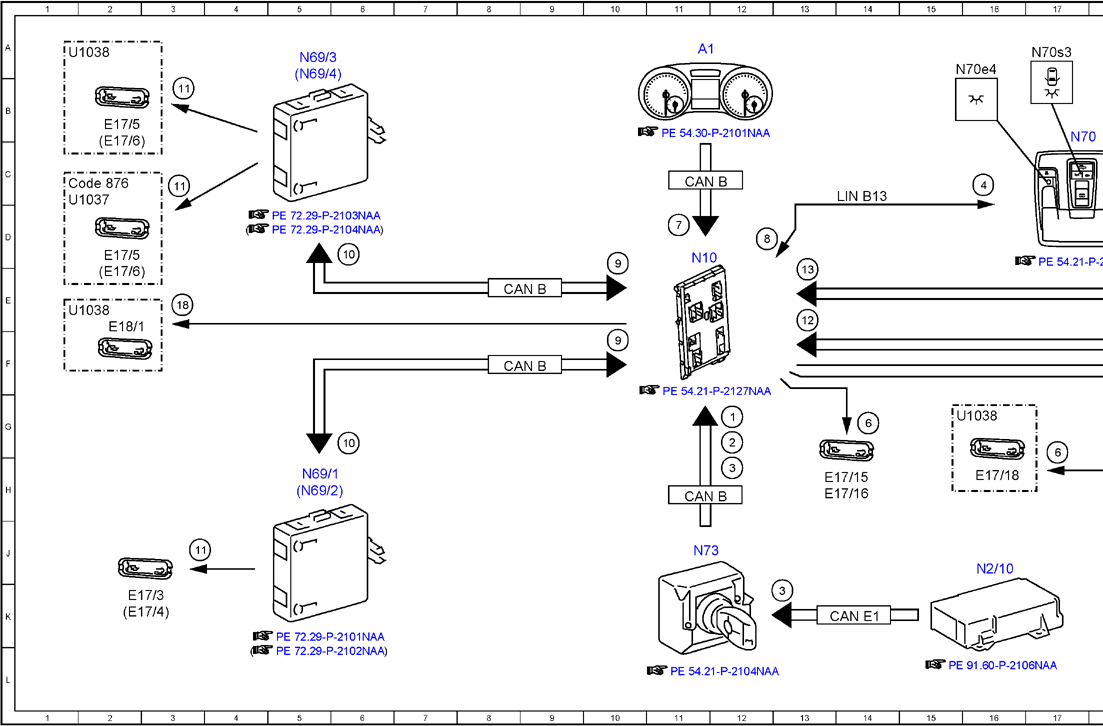

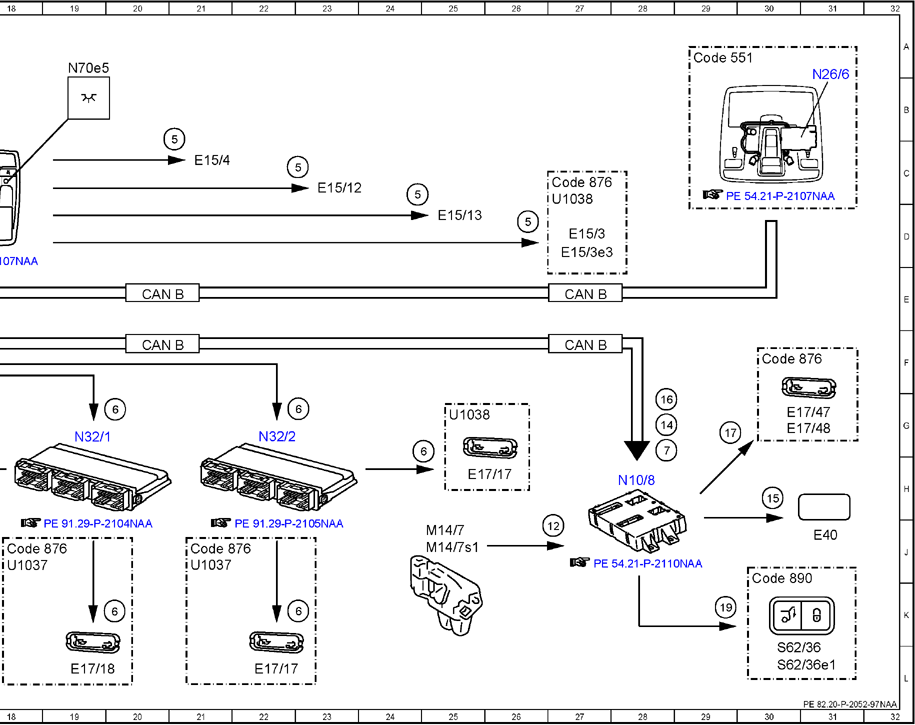

(Automatic Interior Lights Control Electrical Function Schematic - PE82.20-P-2052-97NAA)
MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Central locking, status | 12G |
| 10 | Exit and warning lamp, request | 6G |
| 10 | Exit and warning lamp, request | 6D |
| 11 | Exit and warning lamp, actuation | 3J |
| 11 | Exit and warning lamp, actuation | 3B |
| 11 | Exit and warning lamp, actuation | 3C |
| 12 | Tailgate rotary tumbler switch, status | 13E |
| 12 | Tailgate rotary tumbler switch, status | 27J |
| 13 | Anti-theft alarm system, status | 13E |
| 14 | Ambient lamp, request | 28G |
| 15 | Ambient lamp, actuation | 30H |
| 16 | Illuminated door sill molding, request | 28G |
| 17 | Illuminated door sill molding actuation | 29G |
| 18 | Load compartment illumination, actuation | 3E |
| 19 | Liftgate control button symbol illumination, actuation | 29K |
| 2 | Circuit 15, status | 12G |
| 3 | Crash, signal | 13K |
| 3 | Crash, signal | 12H |
| 4 | Interior lamp, request | 16C |
| 5 | Rear dome lamp, actuation | 23C |
| 5 | Rear dome lamp, actuation | 24C |
| 5 | Rear dome lamp, actuation | 21C |
| 5 | Rear dome lamp, actuation | 26D |
| 6 | Footwell lamp, actuation | 23G |
| 6 | Footwell lamp, actuation | 20G |
| 6 | Footwell lamp, actuation | 14G |
| 6 | Footwell lamp, actuation | 23K |
| 6 | Footwell lamp, actuation | 20K |
| 6 | Footwell lamp, actuation | 17G |
| 6 | Footwell lamp, actuation | 25G |
| 7 | OFF delay time, status | 11D |
| 7 | OFF delay time, status | 28G |
| 8 | Automatic function switch, status | 12D |
| 9 | Main locking position microswitch, status | 10E |
| 9 | Main locking position microswitch, status | 10F |
| A1 | Instrument cluster | 11A |
| CAN B | Interior CAN | 8F |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 8E |
| CAN B | Interior CAN | 11C |
| CAN B | Interior CAN | 20E |
| CAN B | Interior CAN | 27F |
| CAN B | Interior CAN | 27E |
| CAN E1 | Chassis CAN 1 | 14K |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 29A |
| Code 876 | Interior lights package | 21J |
| Code 876 | Interior lights package | 30F |
| Code 876 | Interior lights package | 18J |
| Code 876 | Interior lights package | 1C |
| Code 876 | Interior lights package | 27C |
| Code 890 | Tailgate control | 30J |
| E15/12 | Left dome lamp, 2nd seat row | 23C |
| E15/13 | Right dome lamp, 2nd seat row | 25D |
| E15/3 | Rear dome lamp | 27D |
| E15/3e3 | Rear interior lamp | 27D |
| E15/4 | Central load compartment dome lamp | 21C |
| E17/15 | Right front footwell lamp | 13H |
| E17/16 | Left front footwell lamp | 13H |
| E17/17 | Left rear footwell lamp | 22L |
| E17/17 | Left rear footwell lamp | 25H |
| E17/18 | Right rear footwell lamp | 19L |
| E17/18 | Right rear footwell lamp | 16H |
| E17/3 | Left front door exit and warning lamp | 2K |
| E17/4 | Right front door exit and warning lamp | 2K |
| E17/47 | Left front illuminated door sill molding | 30G |
| E17/48 | Right front illuminated door sill molding | 30G |
| E17/5 | Left rear door exit and warning lamp | 2B |
| E17/5 | Left rear door exit and warning lamp | 2D |
| E17/6 | Right rear door exit and warning lamp | 2C |
| E17/6 | Right rear door exit and warning lamp | 2E |
| E18/1 | Load compartment lamp | 2E |
| E40 | Tailgate ambient lamp | 31J |
| LIN B13 | Roof LIN | 14C |
| M14/7 | Tailgate central locking motor | 25J |
| M14/7s1 | Tailgate rotary tumbler switch | 25J |
| N10 | SAM control unit | 11D |
| N10/8 | Rear control unit | 28H |
| N2/10 | Supplemental restraint system control unit | 16J |
| N26/6 | ATA [EDW]/towing sensor/interior motion sensor control unit | 31B |
| N32/1 | Driver seat control unit | 19G |
| N32/2 | Front passenger seat control unit | 22G |
| N69/1 | Left front door control unit | 5H |
| N69/2 | Right front door control unit | 5H |
| N69/3 | Left rear door control unit | 5A |
| N69/4 | Right rear door control unit | 5A |
| N70 | Overhead control panel control unit | 17B |
| N70e4 | Left front interior lamp | 16A |
| N70e5 | Right front interior lamp | 19A |
| N70s3 | Interior lamp automatic function switch | 17A |
| N73 | Electronic ignition switch control unit | 11J |
| S62/36 | Tailgate control button | 30L |
| S62/36e1 | Liftgate control button symbol illumination | 30L |
| U1037 | Valid for vehicle model designation 166.0 | 21J |
| U1037 | Valid for vehicle model designation 166.0 | 18J |
| U1037 | Valid for vehicle model designation 166.0 | 1C |
| U1038 | Valid for vehicle model designation 166.8 | 1A |
| U1038 | Valid for vehicle model designation 166.8 | 27C |
| U1038 | Valid for vehicle model designation 166.8 | 1E |
| U1038 | Valid for vehicle model designation 166.8 | 15G |
| U1038 | Valid for vehicle model designation 166.8 | 25G |
