(Telematics Services Communications Module, Component Description - GF82.85-P-0220GR)
MODEL 166
up to model year 2016
with CODE B54 (Live Traffic Information)
Location

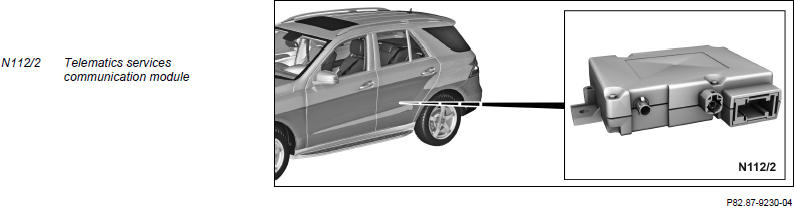

The telematics services communications module is located under the left rear seat.
Tasks
- Receiving and transmitting vehicle data and position data
- Receiving and forwarding real time traffic data
Receiving and transmitting vehicle data and position data
The telematics services communications module uses the diagnostic CAN (CAN D).
The telematics services communication module requests vehicle data via CAN and receives it.
The telematics services communication module receives position data via a universal serial bus (USB) connection from the COMAND controller unit (A40/3).
The telematics services communications module sends the vehicle and position data via direct line to the emergency call system antenna (A2/52).
The vehicle and position data is required for the real time traffic data service or the vehicle-specific homepage.
Receiving and forwarding real time traffic data
The telematics services communication module receives real time traffic data from the emergency call system antenna and forwards it via USB connection to the COMAND controller unit.
| Wiring diagram for telematics services communications module control unit | N112/2 | PE82.85-P-2105-97NAA |
