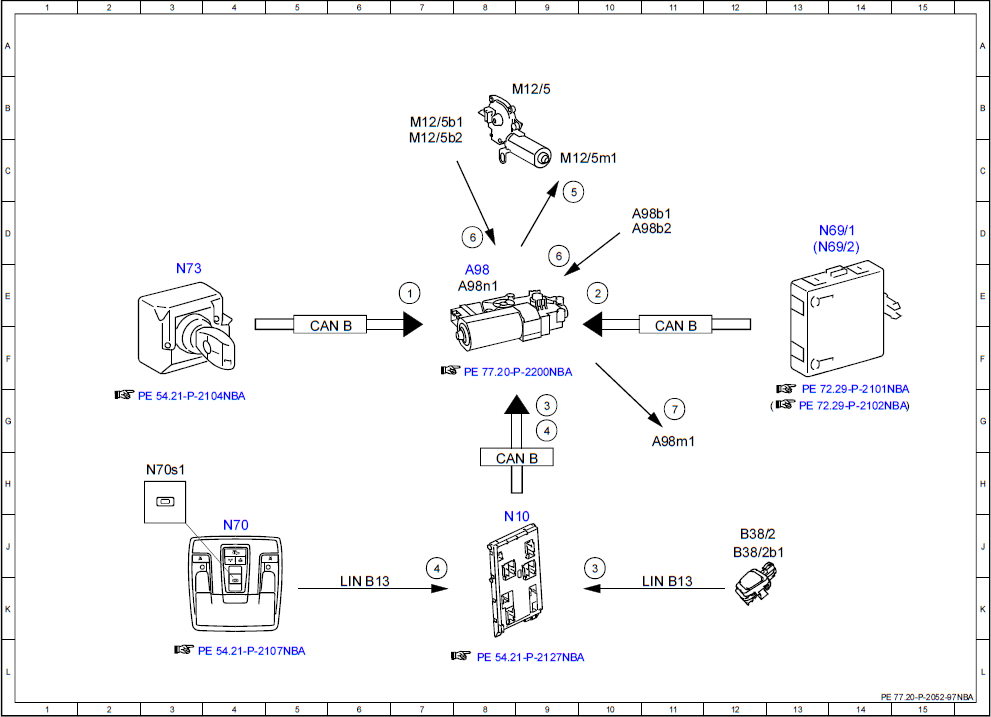

Function Schematic For Electric Panoramic Sliding Roof - PE77.20-P-2052-97NBA
MODEL 166 as of model year 2016 with CODE 413 (Automatic panoramic sliding sunroof)
MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7E |
| 2 | Door rotary tumbler switch, status | 10E |
| 3 | Rain closing, request | 9G |
| 3 | Rain closing, request | 10K |
| 4 | Sliding roof switch, status | 9G |
| 4 | Sliding roof switch, status | 7J |
| 5 | Panoramic sliding sunroof roller sun blind motor, actuation | 9C |
| 6 | Hall sensors, signal | 9D |
| 6 | Hall sensors, signal | 8D |
| 7 | Panoramic sliding roof motor, actuation | 11G |
| A98 | Panoramic sliding roof control module | 8E |
| A98b1 | Hall sensor 1, panoramic sliding roof | 10D |
| A98b2 | Hall sensor 2, panoramic sliding roof | 10D |
| A98m1 | Panoramic sliding roof motor | 11G |
| A98n1 | Panoramic sliding roof control unit | 8E |
| B38/2 | Rain/light sensor with additional functions | 12J |
| B38/2b1 | Rain sensor | 12J |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 11F |
| LIN B13 | Roof LIN | 11K |
| LIN B13 | Roof LIN | 6K |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 9B |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 7B |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 7C |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 9C |
| N10 | SAM control unit | 8J |
| N69/1 | Left front door control unit | 13D |
| N69/2 | Right front door control unit | 13D |
| N70 | Overhead control panel control unit | 4J |
| N70s1 | Sliding roof switch | 3H |
| N73 | Electronic ignition switch control unit | 3E |
