Install Panoramic Rear Glass Roof - AR77.21-P-0600-06SX
MODEL 166, 207.3, 212, 221.1 with CODE (413) Panoramic glass roof with top sliding roof
Shown on model 221
Install rear glass roof (1) within 5 minutes of applying glue to body before adhesive force of glue starts to decrease
- Position rear glass roof (1) above roof cutout with aid of helper, carefully lay onto glue bead and lightly press on.
Cup suction tool/shackle (for removing and installing windows)
- Remove adhesive tape (2) which fastens the lip of the rear window.

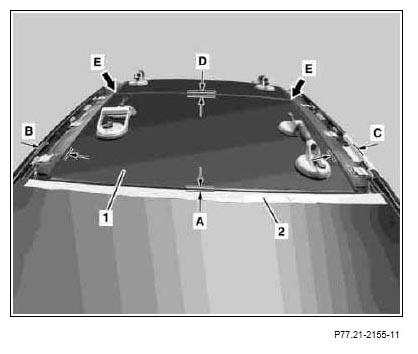

- Align rear glass roof (1) in relation to roof paneling, to rear window and to front glass according to dimensions noted (A, B, C, D)
Ensure that the rear glass roof (1) is flush with the front glass roof at side (arrows E).
- Align height of rear glass roof (1) in relation to front glass roof and to rear window by pressing on according to dimensions noted.
- Carefully remove cup suction tool.
Cup suction tool/shackle (for removing and installing windows)
