Adjust Tilting/Sliding Roof Panel - AR77.20-P-1100GZ
MODEL 164, 166 with CODE 414 (Power glass tilting/sliding roof)

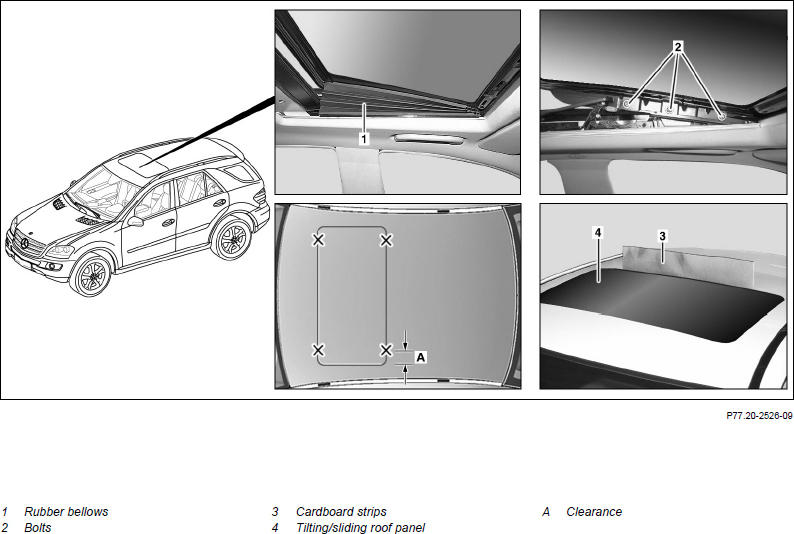

Shown on model 164.1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Adjust | |||
| 1 | Move tilting/sliding roof panel (4) into tilt position | ||
| 2 | Remove rubber bellows (1) on left and right from tilting/sliding roof | MODEL 164, 166 with CODE 414 (Power glass tilting/sliding roof) | |
| MODEL 164 with CODE 414 (Power glass tilting/sliding roof) | AR77.20-P-1150GZ | ||
| 3 | Close tilting/sliding roof panel (4) | ||
| 4 | Loosen bolts (2) on left and right on tilting/sliding roof panel (4) | ||
| 5 | Insert cardboard strips (3) at rear into expansion joint for tilting/sliding roof panel (4) | ||
| 6 | Adjust tilting/sliding roof panel (4) in relation to exterior roof surface | ||
| MODEL 166 with CODE 414 (Power glass tilting/sliding roof) | *BE77.21-P-1001-01E | ||
| MODEL 164 with CODE 414 (Power glass tilting/sliding roof) | *BE77.20-P-1001-01E | ||
| 7 | Tighten left and right bolts (2) on tilting/sliding roof panel (4) | ||
| 8 | Move tilting/sliding roof panel (4) to tilt position and remove cardboard strips (3) | ||
| 9 | Remove rubber bellows (1) on left and right from tilting/sliding roof | MODEL 164, 166 with CODE 414 (Power glass tilting/sliding roof) | |
| MODEL 164 with CODE 414 (Power glass tilting/sliding roof) | AR77.20-P-1150GZ | ||
| 10 | Connect STAR DIAGNOSIS and perform teach-in run for anti-pinch protection for tilting/sliding roof | ||
| AD00.00-P-2000-04A |
TEST AND ADJUSTMENT VALUES OF PANORAMIC ROOF
| Number | Designation | MODEL 166 | ||
|---|---|---|---|---|
| BE77.21-P-1001-01E | Height setting | Measuring position "A" (X) | mm | 100 |
| Front: deeper than outer skin of roof | mm | 0, 5 | ||
| Rear: higher than outer skin of roof | mm | 0, 5 | ||
TEST AND ADJUSTMENT VALUES FOR TILTING/SLIDING ROOF
| Number | Designation | MODEL 164.1/8 | ||
|---|---|---|---|---|
| BE77.20-P-1001-01E | Height setting | Measurement position "A" (x) | mm | 100 |
| Front: deeper than outer skin of roof | mm | 1 | ||
| Rear: higher than outer skin of roof | mm | 1 | ||
