Panoramic Sliding Roof - Clean And Lubricate Guide Mechanism - AP77.20-P-7732EW
MODEL 166, 207.3, 212 with CODE (413) Panoramic sliding roof
Shown on model 212.0
| Clean | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |

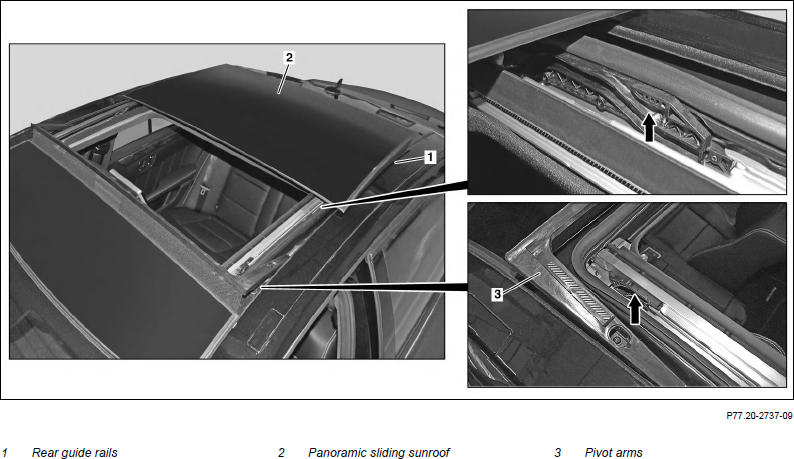

| 1 | Drip three drops of special sliding roof antifriction agent into each rear guide rail (1) | Special antifriction agent | *BR00.45-Z-1055-06A |
| 2 | Switch on ignition and open panoramic sliding roof (2) | ||
| 3 | Use rag to clean crosshatched area of wind deflector pivot arms (3) | ||
| 4 | Clean the upper and lower guide rails (arrows over the entire length with rags | ||
| 5 | Apply thin coating of antifriction paste to crosshatched area of wind deflector pivot arms (3) | Lubricant paste | *BR00.45-Z-1004-06A |
| 6 | Coat contact surfaces of guide rails (arrows) over the entire length with a thin coating of lubricating paste | Lubricant paste | *BR00.45-Z-1004-06A |
| 7 | Perform function test on panoramic sliding roof (2) | ||
| 8 | Remove excess lubricant | ||
| 9 | Close panoramic sliding roof (2) and switch off ignition |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-06A | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | A 001 989 46 51 |
| BR00.45-Z-1055-06A | Special sliding compound | A 000 989 36 60 |
