Remove/Install Inside Rearview Mirror - AR68.40-P-0001GQ
MODEL 166
MODIFICATION NOTES
| 21.1.12 | "Turn open end wrench to right" added | Operation step 7 |
| Removing | |||
| Risk of injury Skin, eye and respiratory system irritation may occur through contact or inhalation of substances contained in the mirror lens | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m). |
|
| 2 | Remove overhead control panel | AR82.20-P-1100GQ | |

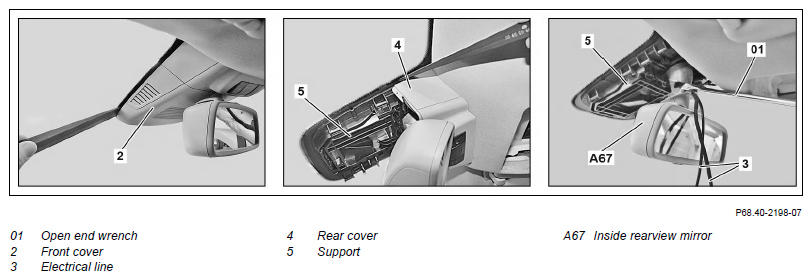

| 3 | Unclip front cover (2) from inside rearview mirror (A67) | Fig 1 | |
| 4 | Unclip rear cover (4) from inside rearview mirror (A67) | ||
| 5 | Disconnect electrical lines (3) from inside rearview mirror (A67) | ||
| 6 | Disconnect electrical connector from rain sensor | If necessary | |
| 7 | Turn inside rearview mirror (A67) on mirror base (01) to right with open end wrench and remove from mirror holder | ||
| Install | |||
| 8 | Position inside rearview mirror (A67) on mirror holder and turn mirror base (01) to left with open end wrench | ||
| 9 | Connect electrical connector to rain sensor | If necessary | |
| 10 | Connect electrical lines (3) to inside rearview mirror (A67) | ||
| 11 | Clip rear cover (4) into inside rearview mirror (A67) | ||
| 12 | Clip front cover (2) to inside rearview mirror (A67) | ||
| 13 | Install overhead control panel | AR82.20-P-1100GQ | |
| 14 | Adjust inside rearview mirror (A67) to steering variant | When replacing inside rearview mirror (A67) | AR68.40-P-0001-01A |
| 15 | Perform initial startup for garage door opener transmitter unit with Star Diagnosis | When replacing inside rearview mirror (A67), on vehicles with code (231) Garage door opener or code (232) Garage door opener with frequency of 284-390 MHz. | AD00.00-P-2000-04A |
| Notes on programming garage door opener transmitter unit | AH68.05-P-0002-01A |
