Windshield Wiper Motor, Basic Function - GF82.30-P-2001A

Model all (CAR)

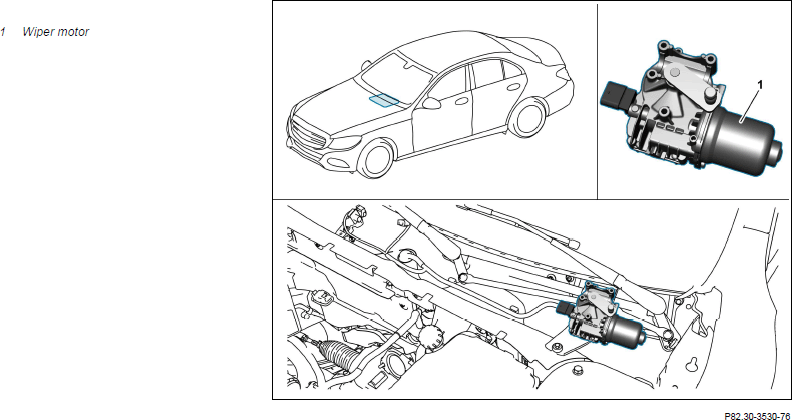

Fig 1: Wiper Motor Components Location - Model All (Car)

Courtesy of MERCEDES-BENZ USA

Location

The wiper motor is located on the driver side in the engine compartment in front of the windshield.

Task

The wiper motor drives the windshield wiper arms. Depending on the vehicle model, the wiper motor is actuated by the central signal acquisition and actuation module or by the front signal acquisition and actuation module.
