Component Description For The Radio - GF82.60-P-3122GN
Model 166
as of model year 2016
with code 505 (Radio 20 NTG5, not navigation-enabled)
Model 166
as of model year 2016
with code 522 (Audio 20 radio)
Model 292
with code 505 (Radio 20 NTG5, not navigation-enabled)
Model 292
with code 522 (Audio 20 radio)

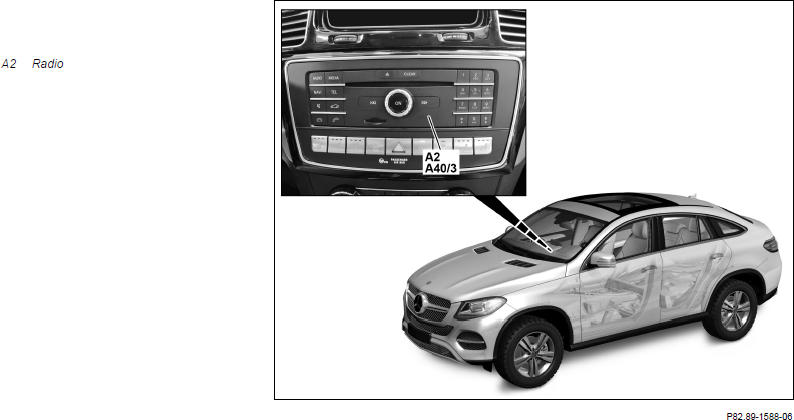

Shown: Model 292
Location
The radio is centrally located in the instrument panel.
Tasks
- Central control unit for the entertainment and communication systems integrated into the vehicle
- Integration of Smartphones (model 166 as of 14.12.2015, model 292 as of 01.12.2015)
- Reading in of input signals as well as actuation of output media and system components
Central control unit for the entertainment and communication systems integrated into the vehicle
The radio provides the user with a structured and standard user interface for the following system components:
- Audio system (e.g. "Radio", "CD" (as well as MP3) and further multimedia devices)
- Telephony (with telephone book function)
- Internet
- sound settings (e.g. "bass", "treble", "fader", "balance")
- System settings (e.g. "Brightness" and "Contrast" of the Audio/COMAND display (A40/8))
- Navigation (with CODE 522 (Audio 20 radio) and CODE 357 (Card navigation))
The user interface is shown on the Audio/COMAND display. Using the "Vehicle functions" menu, equipment-dependent contents and functions of additional systems (e.g. climate control, seat adjustments) can be shown and controlled on the Audio/COMAND display.
Model 166
as of model year 2016
with code 357 (Map navigation)
with code 522 (Audio 20 radio)
Model 292
with code 357 (Map navigation)
with code 522 (Audio 20 radio)
The navigation functions can be used via a voice control system integrated in the navigation system.
Integration of Smartphones (model 166 as of 14.12.2015, model 292 as of 01.12.2015)
The radio enables the integration of smartphones. In order to ensure that the content is prepared in a vehicle-related way, only apps that have been developed for the following integration standards are supported:
- Android Auto (Google)
- CarPlay (Apple)
In order to use the smartphone applications, the smartphone must be connected via the universal serial bus (USB) to USB connector 2 (A90/5x2) of the multimedia connection unit (A90/5) and the integration standard selected via the telephone menu of the radio (unless automatic connection has been selected under "Options").
If a smartphone is connected and the Android Auto or CarPlay integration standard is active, the radio is switched to a special operating mode ("integration mode") in which not all radio functions can be used. The following radio functions are not available if Android Auto or CarPlay is activated:
- Media player
- Navigation (equipment dependent)
- Telephony
Model 166, 292
as of model year 2018
with code 522 (Audio 20 radio)
Integration mode can be switched off via the radio.
The radio (AM and FM), vehicle settings and safety-relevant functions such as the emergency call function (with code 360 (HERMES UMTS) or with code 362 (HERMES LTE)) can still be used.
With Android Auto, the following usage restrictions apply for the telephony: Calls can only be made through the connected smartphone. Telephony with code 379 (Telephone module with Bluetooth® (SAP)) is not possible.
When in integration mode, the radio supports the smartphone applications as follows:
- Volume setting for all audio signals
- Forwarding of control signals (e.g. from radio buttons, from the Audio/COMAND control panel (A40/9), long press of the voice control system on button (S111s4), pressing the accept/terminate phone call button (S111s3) from the right multifunction steering wheel button group (S111))
- Forwarding of signals from the hands-free system microphone group (A67b1) (e.g. for voice control or telephony)
- Audio outputs (e.g. for voice control or telephony) over the speaker system or forwarding of the signals to the sound system amplifier control unit (N40/3) (with code 810 (Sound system))
- Muting radio reception (mute function), e.g. for smartphone telephony
- Forwarding of position data (e.g. GPS signals, signals from gyro sensor, wheel speed signals) (with code 522 (Audio 20 radio)
- Forwarding of video signals generated by the Smartphone for displaying on the Audio/COMAND display
- Forwarding of status information for displaying in the instrument cluster (A1)
- Forwarding of data (arrow displays) to the instrument cluster as part of Android Auto navigation mode (with code 522 (Audio 20 radio) as of 01.06.2017)
The smartphone applications themselves are not shown in the instrument cluster.
If the smartphone is being used to make a call, the radio receives and sends telephone signals from and to the smartphone via the Bluetooth® antenna (A2/91) for Android Auto, and via the USB connection to the multimedia connection unit for CarPlay.
Reading in of input signals as well as actuation of output media and system components
The radio sends and receives signals via the following connections:
- CAN
- Media Oriented System Transport (MOST)
- Ethernet
- Direct line
CAN
The radio is a subscriber of the telematics CAN (CAN A) and the interior CAN (CAN B):
- The telematics CAN is used by the radio, e.g. to receive the control signals from the Audio/COMAND control panel.
- Via the telematics CAN, the radio sends control signals to the Audio/COMAND display for example
- Via the interior CAN, the radio receives, e.g. the signals of the left multifunction steering wheel button group (S110) and the right multifunction steering wheel button group from the instrument cluster.
- Via the interior CAN, the radio transmits e.g. navigation displays (with code 357 (Map navigation)) to the instrument cluster and position data for the telematics services communications module (N112/2) (with code 350 (eCall Europe emergency call system) or with code 06U (Mercedes connect me basic services) or for the HERMES control unit (N112/9) with code 351 (Emergency call system (HERMES))).
Media Oriented System Transport (MOST)
The radio exchanges data with the following control units over MOST:
- Sound system amplifier control unit (with code 810 (Sound system))
- Tuner unit (A90/4) (with CODE 536 (SIRIUS satellite radio) or with CODE 537 (Digital radio (DAB)))
Ethernet
The radio is connected to the diagnostic connector (X11/4) via the Ethernet.
Direct line
The radio is equipped with the following direct connections:
- Circuit 30g
- Circuit 31
- FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18) (input)
- FM 2 and DAB antenna amplifier (A2/19) (model 292) or FM 2, DAB and TV antenna amplifier (A2/19) (model 166) (input)
- Hands-free system microphone group (input)
- Multifunction antenna (A28/11) (with CODE 522 (Audio 20 radio)), in vehicles with CODE 348 (Emergency call/assist system) over the Global Positioning System antenna splitter (A2/5) (input)
- Muting of audio sources (mute function) from the emergency call system control unit (N123/4) (with code 348 (Emergency call/assist system) and except code 810 (Sound system)) (input)
- Muting of audio sources (mute function) from the telematics services communications module (with code 350 (eCall Europe emergency call system) or code 06U (Mercedes connect me basic services) and except code 810 (Sound system)) (input)
- Muting of audio sources (mute function) from the HERMES control unit (with code 351 (Emergency call system (HERMES)) and except code 810 (Sound system)) (input)
- Reversing camera (B84/3) (with code 218 (Reversing camera)) or 360° camera control unit (N148) (with code 501 (360° camera)) (input)
- Bluetooth® antenna (input and output)
- Multimedia connection unit, in vehicles with code B54 (Live Traffic Information) via the USB splitter (A2/128) (input and output)
- Wake-up line for MOST (output)
- LVDS line (Low Voltage Differential Signal) for video data to the Audio/COMAND display (output)
- Audio output for speaker system (except code 810 (Sound system)), in model 292 with code B63 (AMG eSound) to the engine sound control unit (N40/1) (output)
- Switch on signal and power supply for mobile phone contact plate (X237/1) (with CODE 386 (Comfort telephony) and cellular telephone system antenna amplifier/compensator (A28/3) (with CODE 386 (Comfort telephony)) (output)
- Microphone output to emergency call system control unit (with code 348 (Emergency call/Assist system)) or to telematics services communications module (with code 350 (eCall Europe emergency call system)) or to HERMES control unit (with code 351 (Emergency call system (HERMES))) (output)
Structure
The following components are integrated in the radio:
- Controls (buttons)
- Arithmetic unit
- Single drive for CDs
- Searchable database for audio files, including cover art and cover flow
- Bluetooth® receiver
- Radio electrical fuse (A2f1) in connector A to D on the rear panel
- 3 radio tuners for AM reception, FM phase diversity and separate FM tuner function for data services, e.g. traffic messages
- HD radio tuner (High Definition) (with code 494 (USA version))
- 4 channel amplifier (except CODE 810 (Sound system))
- SD (Secure Digital) card slot (with code 522 (Audio 20 radio))
- GPS receiver (Global navigation system) (with code 522 (Audio 20 radio))
- Gyro sensor (2D) (with CODE 522 (Audio 20 radio))
- Traffic data recorder (with code 522 (Audio 20 radio))
| Cockpit Management and Data System (COMAND) control unit wiring diagram | PE82.85-P-2101-97NBA |
