(Component Description For Media Interface Control Unit - GF82.60-P-5000GRA)
MODEL 166.0
as of model year 2013 up to model year 2016
with CODE 518 (Media interface)
MODEL 166.8
up to model year 2016
with CODE 518 (Media interface)

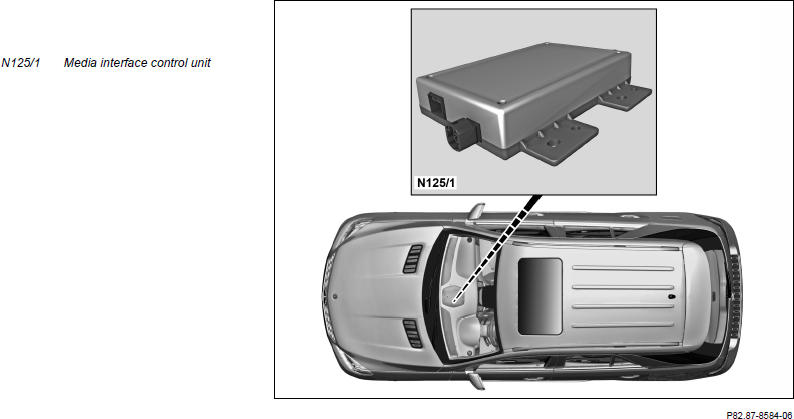

Illustrated on model 166.0
Location
The media interface control unit is located in the front to the left of center between the instrument panel and engine compartment.
Tasks
- Receive signals
- Transmitting signals
Receive signals
- Direct lines
- Media Oriented System Transport (MOST)
Direct lines
- Power supply via circuit 31 and circuit 30g
- Audio signals and data from the Media Interface electrical connector (X18/70) over a prefabricated connecting cable
- Electronic wake-up for MOST
Media Oriented System Transport (MOST)
- Control and operating signals from the audio equipment
Transmitting signals
- Direct lines
- MOST
Direct lines
- General power supply to electrical connector for Media Interface and for the Universal Serial Bus (USB)
- Control signals to media interface electrical connector via a prefabricated connecting cable
MOST
- Audio signals and data to the audio equipment
| Wiring diagram for media interface control unit | PE82.60-P-2105-97NAA |
