Remove/Install Headlamp For Daytime Running Light - AR82.10-P-2300GQ
MODEL 166 (except 166.074/874)
Shown on model 166.024

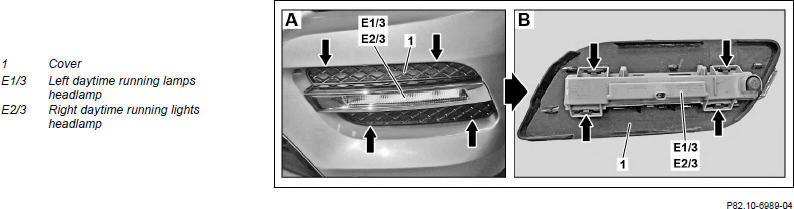

Fig 1: Headlamp For Daytime Running Light Components Location - Model 166 Except 166.074/874 (Shown On Model 166.024)
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 2 | Unclip left or right cover (1) (arrows A) and remove with left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) from bumper | Fig 2 | |
| 3 | Release and disconnect electrical connector at left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) | ||
| 4 | Unclip left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) with wide screwdriver from cover (1) (arrows B) | If necessary | |
| 5 | Install in the reverse order |
