Remove/Install Panoramic Sunroof Drive Guide Rail - AR77.21-P-0430EW
Model 166, 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof)
Shown on model 212.0 on right side of vehicle

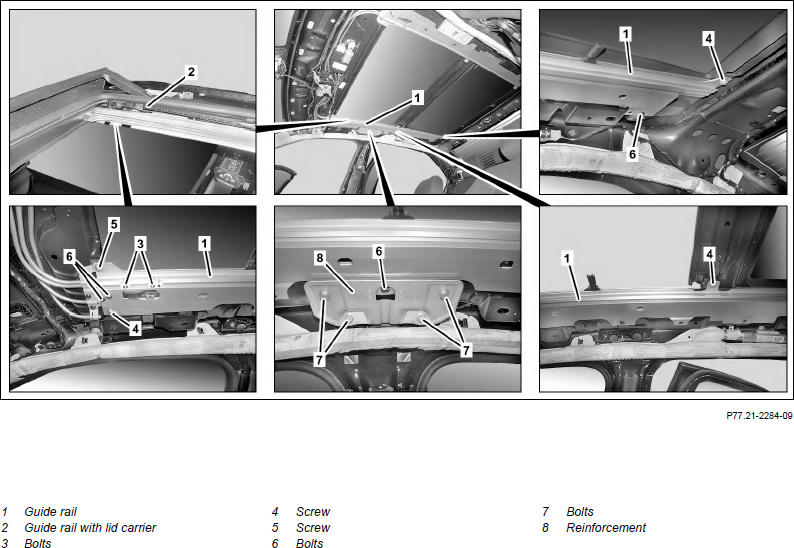

Fig 1: Panoramic Sunroof Drive Guide Rail Components Location - Model 166 With Code 413 (Shown On Model 212.0)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 | Remove panoramic sliding roof | Model 166 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0500GQ |
| Model 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0500EW | ||
| 2 | Remove roller sun blind of panoramic sliding sunroof | Model 166, 212 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0215EW |
| 3 | Remove roller sun blind motor on panoramic sliding roof | Model 166 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0490GQ |
| Model 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0490EW | ||
| 4 | Remove panoramic sliding roof motor | Model 166 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-6995GQ |
| Model 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-6995EW | ||
| 5 | Adjust gate with lid carrier (2) with emergency adjustment feature | ||
| 6 | Loosen bolts (3) on left and right gate with lid carrier (2) | ||
| 7 | Remove gate with lid carrier (2) | ||
| 8 | Remove bolts (7) | ||
| 9 | Remove reinforcement (8) | ||
| 10 | Remove screw/bolts (4, 5, 6) | ||
| 11 | Pull guide rail (1) together with drive cable out of guide tubes and remove | ||
| Install | |||
| 12 | Position guide rail (1) | ||
| 13 | Screw in bolts (4, 5, 6) to stop | ||
| 14 | Press guide rail (1) toward outside in front and rear area and tighten bolts (4, 5, 6) | ||
| 15 | Tighten reinforcement (8) with bolts (7) | ||
| 16 | Position gate with lid carrier (2) | ||
| 17 | Loosen bolts (3) on left and right gate with lid carrier (2) | ||
| 18 | Install panoramic sliding roof motor | Model 166 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-6995GQ |
| Model 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-6995EW | ||
| 19 | Remove/install motor for roller sun blind on panoramic sliding roof | Model 166 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0490GQ |
| Model 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0490EW | ||
| 20 | Install roller sun blind of panoramic sliding roof | Model 166, 212 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0215EW |
| 21 | Install Panoramic sliding sunroof | Model 166 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0500GQ |
| Model 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0500EW |
