Remove/Install Panoramic Roof Wind Deflector - AR77.21-P-0100GQ

MODEL 166

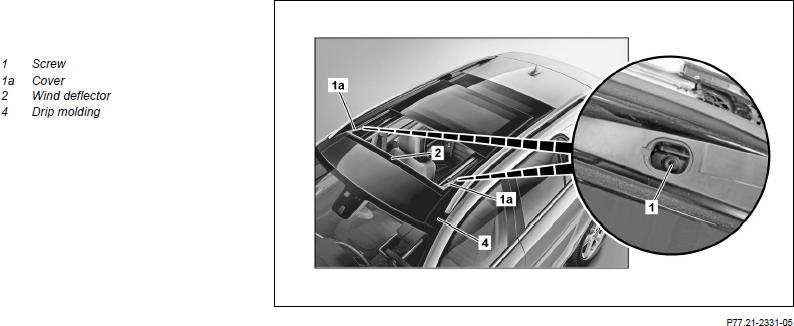

Fig 1: Panoramic Roof Wind Deflector Components Location - Model 166

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
1	Open front glass roof
2	Remove covers (1a) and unscrew bolts (1)	Pull wind deflector (2) downwards and slide toward front until it is flush with seal (3).

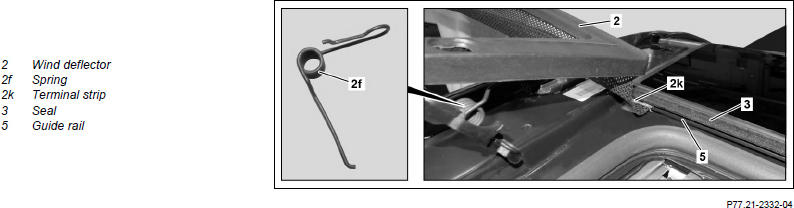

3	Lay wind deflector (2) down toward front and remove springs (2f)	When replacing springs (2f)
	Check
4	Check gasket (3)	Check condition and correct seating, replace if necessary.
5	Remove left roof railing		AR77.40-P-5000GZ
6	Remove left drip rail (4)
7	Pull terminal strip (2k) on net on wind deflector (2) to left out of guide rail (5) and remove wind deflector (2)
8	Install in the reverse order
