Remove/Install Drive Cable For Panoramic Sliding Sunroof - AR77.21-P-0240EW
Model 166, 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof)

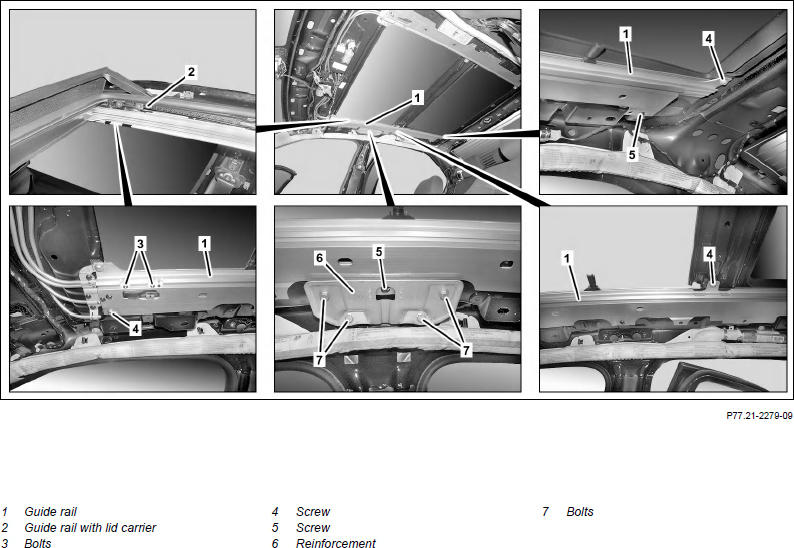

Shown on model 212.0 on right side of vehicle

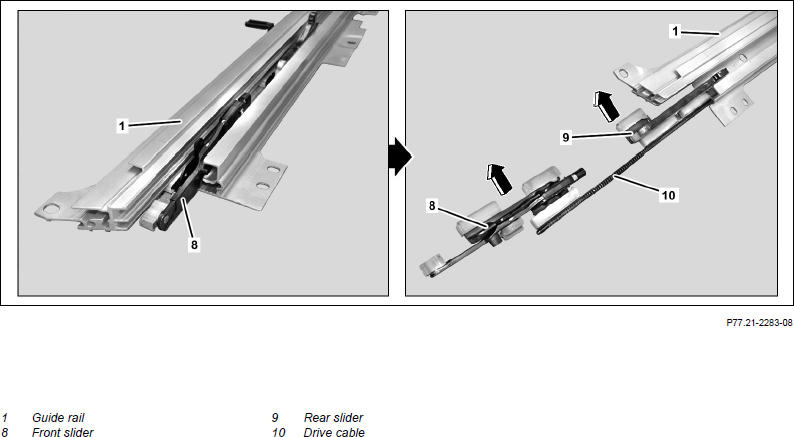

Shown on model 212.0 on right guide rail (1)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove front panoramic sliding roof | Model 166 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0500GQ |
| Model 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0500EW | ||
| 2 | Move sliding roof in closing direction to end position | ||
| 3 | Remove roller sun blind of panoramic sliding sunroof | Model 166, 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-0215EW |
| 4 | Remove panoramic sliding roof motor | Model 166 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-6995GQ |
| Model 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof) | AR77.21-P-6995EW | ||
| 5 | Adjust gate with lid carrier (2) with emergency adjustment feature | ||
| 6 | Loosen bolts (3) on left and right gate with lid carrier (2) | ||
| 7 | Remove gate with lid carrier (2) | ||
| 8 | Remove bolts (7) | Model 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof) | |
| 9 | Remove reinforcement (6) | Model 212.0/1/2 with code 413 (Automatic panoramic sliding sunroof) | |
| 10 | Unscrew bolts (4, 5) | ||
| 11 | Carefully lower guide rails (1) until the drive cable (10) can be pulled out | ||
| 12 | Slide drive cable (10) toward rear until guide rail (1) can be pulled out | ||
| 13 | Pull drive cable (10) out of guide rail (1) together with front slide (8) and rear slide (9) | ||
| 14 | Remove front slider (8) and rear slider (9) in direction of arrow as soon as the guide rail (1) is exposed | ||
| 15 | Install in the reverse order |
