Prepare Rear Panoramic Glass Roof For Installation - AR77.21-P-0600-02SX

Model 166, 207.3, 212, 221.1 with code 413 (Automatic panoramic sliding sunroof)

Notes on removal/installation of bonded elements of panoramic roof

AH77.21-P-0001-01A

Courtesy of MERCEDES-BENZ USA

1. Check rear panoramic roof (1) for damage.

   If there is a problem,

   Replace rear panoramic roof (1).

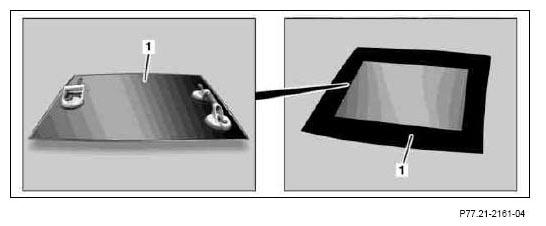

2. Attach cup suction tools to outside of rear panoramic roof (1) and set down rear panoramic roof (1) with inside facing upwards on a suitable base with aid of helper.
3. Apply cleaner using part of paper towel to bonding surfaces of rear panoramic roof (1) and wipe dry using other part of paper towel.
4. Apply primer using enclosed applicator stick to bonding surfaces of rear panoramic roof (1) and allow to fully dry.
