Apply Value For Panoramic Roof Frame - AR77.21-P-0800-03SX

Model 166, 204.3, 207.3, 212, 221.1 with code 413 (Automatic panoramic sliding sunroof)

Model 217.3

	Notes on removal/installation of bonded elements of panoramic roof		AH77.21-P-0001-01A
	000 588 00 72 00 Sealing and corrosion protection gun	Model 217.3	WS97.00-P-0001B

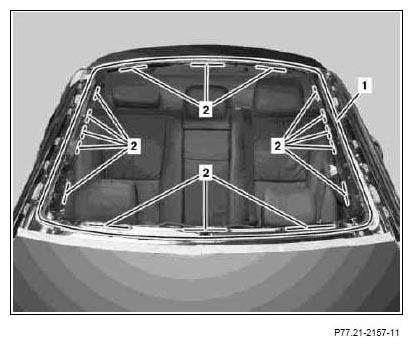

1. Guide electric squeeze gun or sealing and corrosion protection gun with application nozzle along the bonding surfaces (1, 2) on the body flange, thus applying adhesive material uniformly.
2. Immediately remove soiling caused by the adhesive.

   Only if necessary.

3. Completely squeeze out excess adhesive after applying and dispose of it properly.

   Shown on model 221

   Courtesy of MERCEDES-BENZ USA
