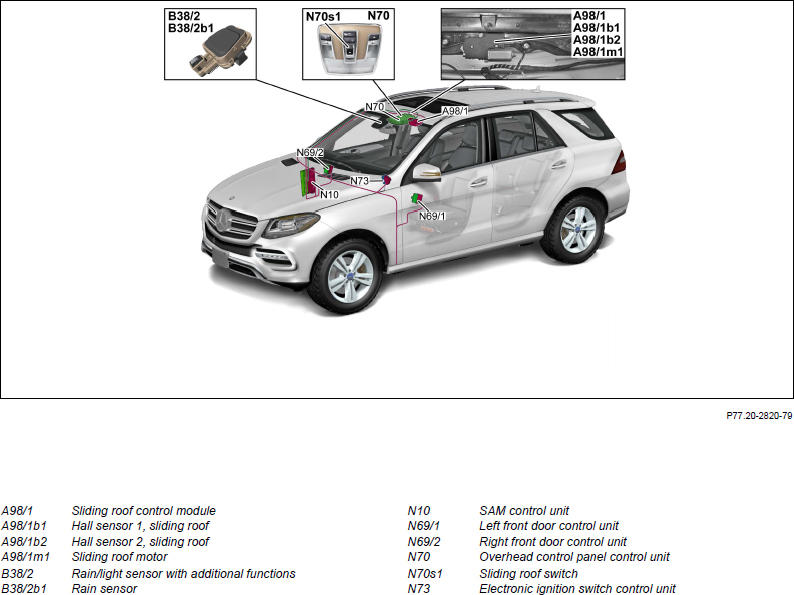

Overview Of System Components For Electric Power Sliding Roof - GF77.20-P-9989GN
MODEL 166 as of model year 2016 with CODE 414 (Sliding sunroof)
Shows model 166.0
| Component description for sliding roof control module | A98/1 | GF77.20-P-4108GN | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005GN | |
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GN | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Table of contents for function description of electric power sliding roof | GF77.20-P-0991GN |
