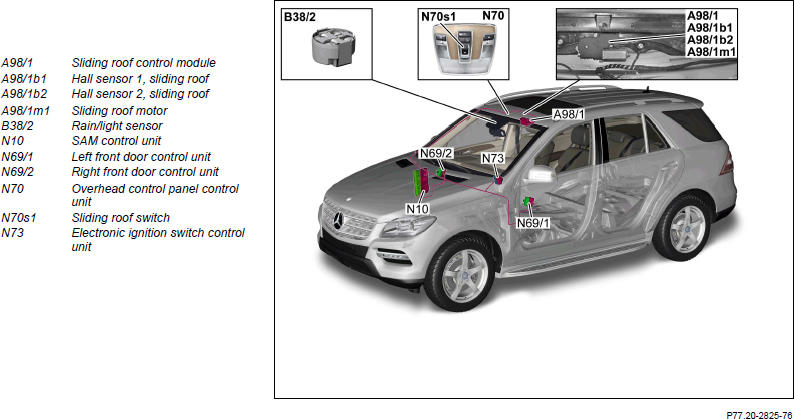

(Overview Of System Components For Electric Power Sliding Roof - GF77.20-P-9989GR)
MODEL 166 up to model year 2016 with CODE 414 (Power glass tilting/sliding roof)
Shows model 166.0
| Component description for sliding roof control module | A98/1 | GF77.20-P-4108GR | |
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GR | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Table of contents for function description of electric power sliding roof | GF77.20-P-0991GR |
