Remove/Install Paneling On A-Pillar - AR68.30-P-4050WX
MODEL 166, 204.9, 207.3
Illustrated on model 204.9
| Remove/install | |||
| Note on functional reliability of windowbag | AH91.60-P-0693-01A | ||

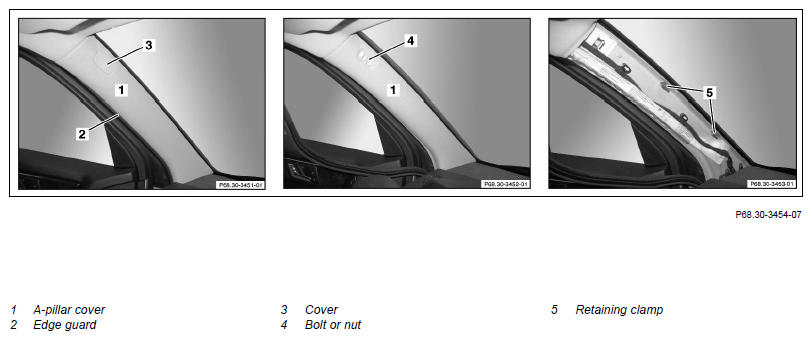

| 1 | Remove edge guard (2) in area of A-pillar paneling (1) | ||
| 2 | Unclip cover (3) | Fig 2 | |
| 3 | Unscrew bolt or nut (4) | ||
| 4 | Press off A-pillar paneling (1) | Directly move assembly wedge to retaining clips (5) and press off. Do not damage windowbag. |
|
| Fig 2 | |||
| 5 | Remove A-pillar paneling (1) out of dashboard guide upward | ||
| 6 | Install in the reverse order |
