Remove/Install Front Axle Shafts - AR33.30-P-0620GQ

MODEL 166 (except 166.006), 292

	Remove/install
1	Remove steering knuckle		AR33.25-P-0400GZ
2	Detach suspension strut from lower transverse control arm	Only tighten threaded connections of suspension components when in ready-to-drive condition! Self-locking nut, shock absorber to wishbone	*BA32.25-P-1002-01O

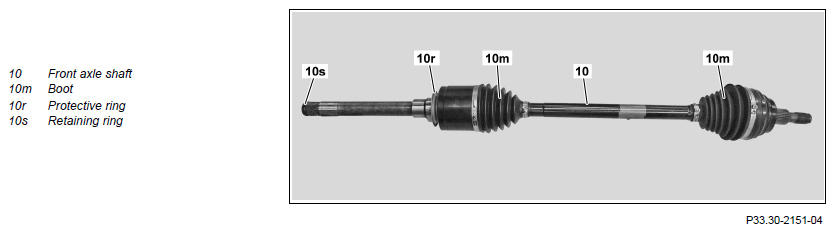

3	Pull front axle shaft (10) out of front axle transmission and remove	Do not damage boots (10m) and protective ring (10r) of front axle shaft (10) and radial shaft sealing ring in the front axle transmission!
		Replace retaining ring (10s).
4	Install in the reverse order

FRONT AXLE SHOCK ABSORBER

Number	Designation			Model 166	Model 292
BA32.25-P-1002-01O	Self-locking nut, shock absorber to wishbone	Stage 1	Nm	100	100
		Stage 2	∠°	180	180
